2020 Phoenix Ranger LR Lidar System with Watts MFD5000 Heavylift RTK aircraft
Integrated Phoenix Lidar system includes:

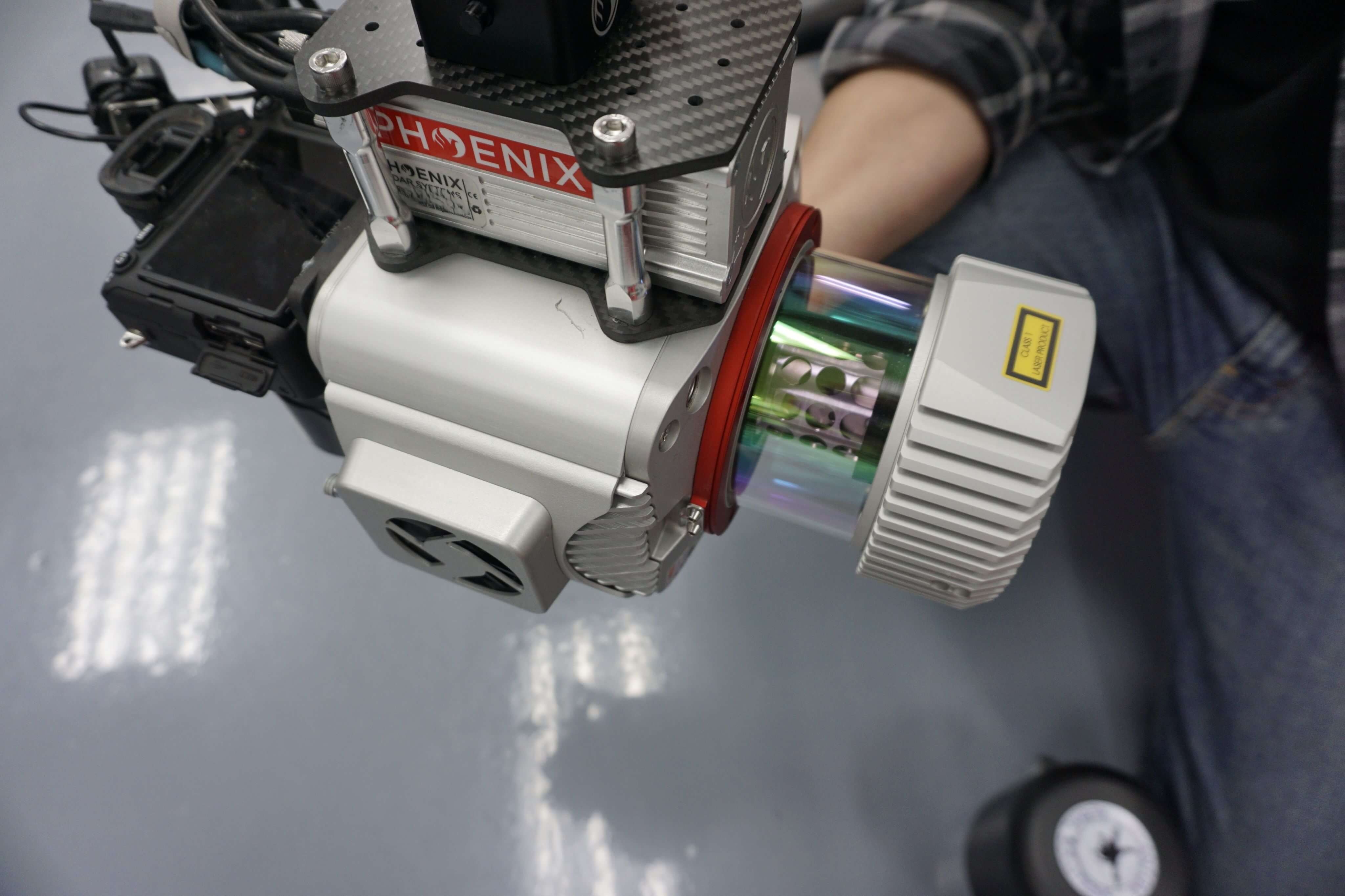

- Riegl VUX-1 LR
- Sony A7RIV
- IMU 27 with Phoenix Air Lite Nav box
- Approximately 110 hours on the laser
- No software included, but updated software can be purchased

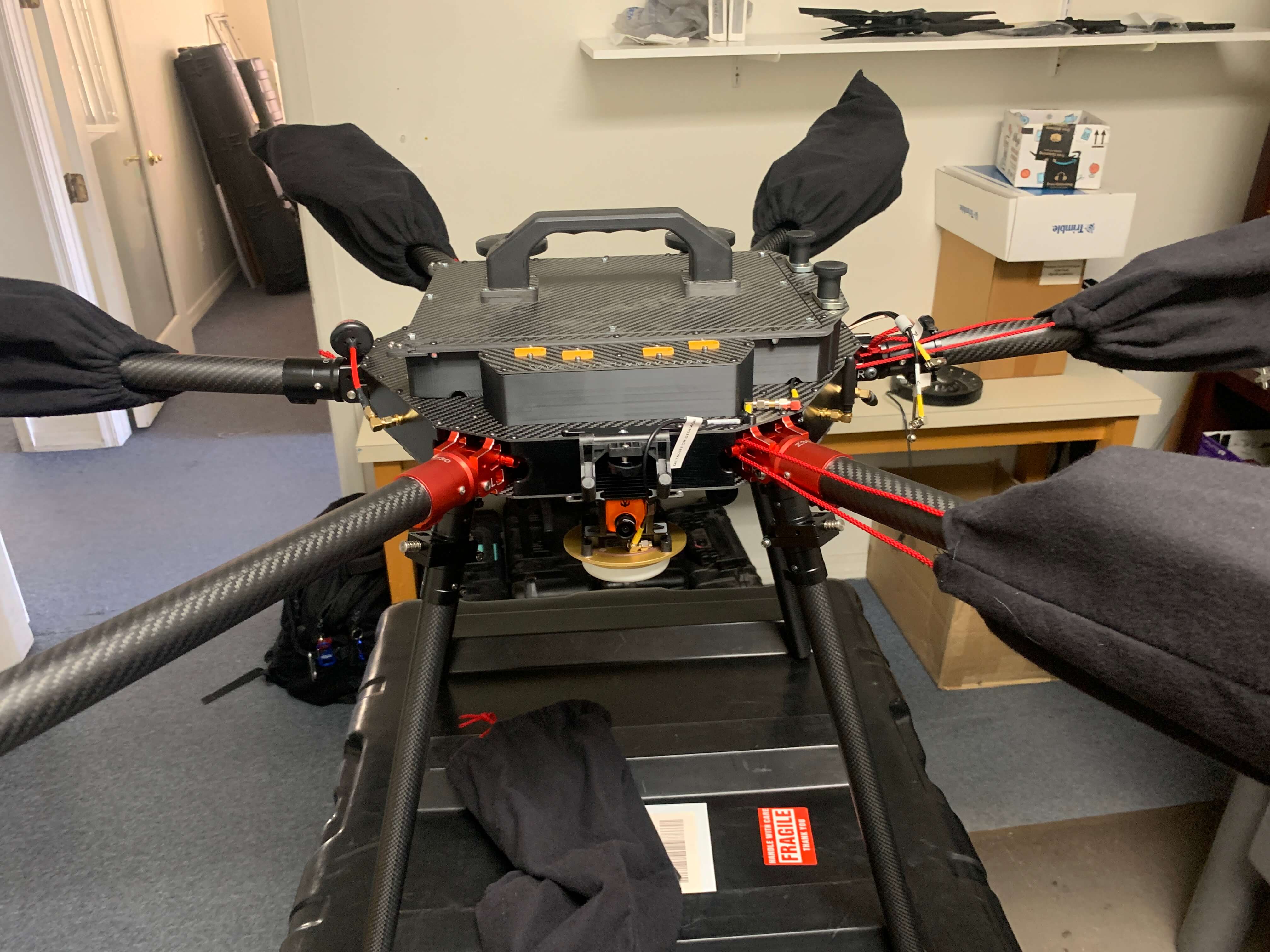

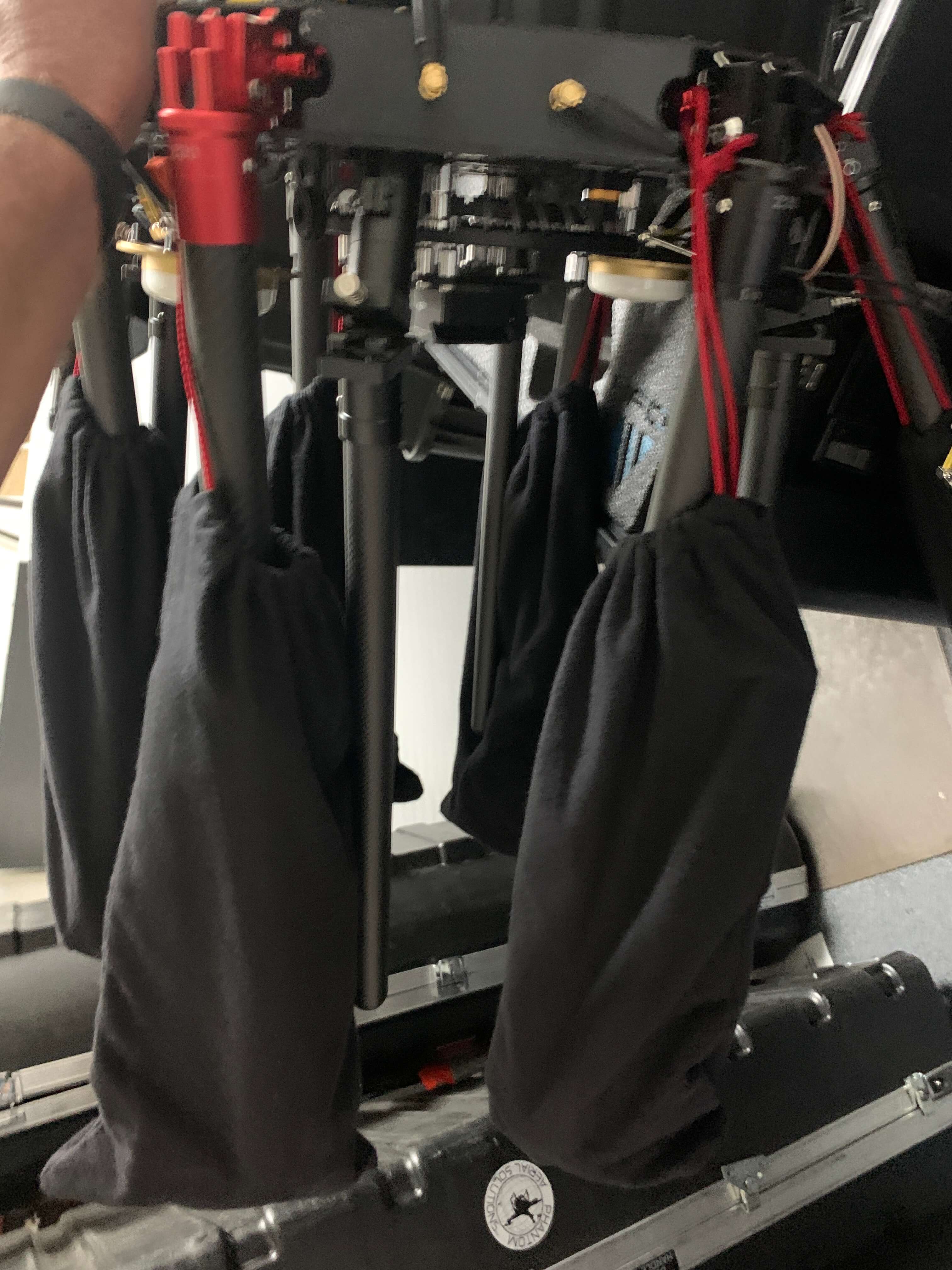

Watts MFD5000 Drone
- Pixhawk 2.1 Blue Cube (Made in USA) Edition (Loaded with ArduPilot firmware)
- DJI E5000 Motor / ESC / Propeller Combo in Hexacopter configuration

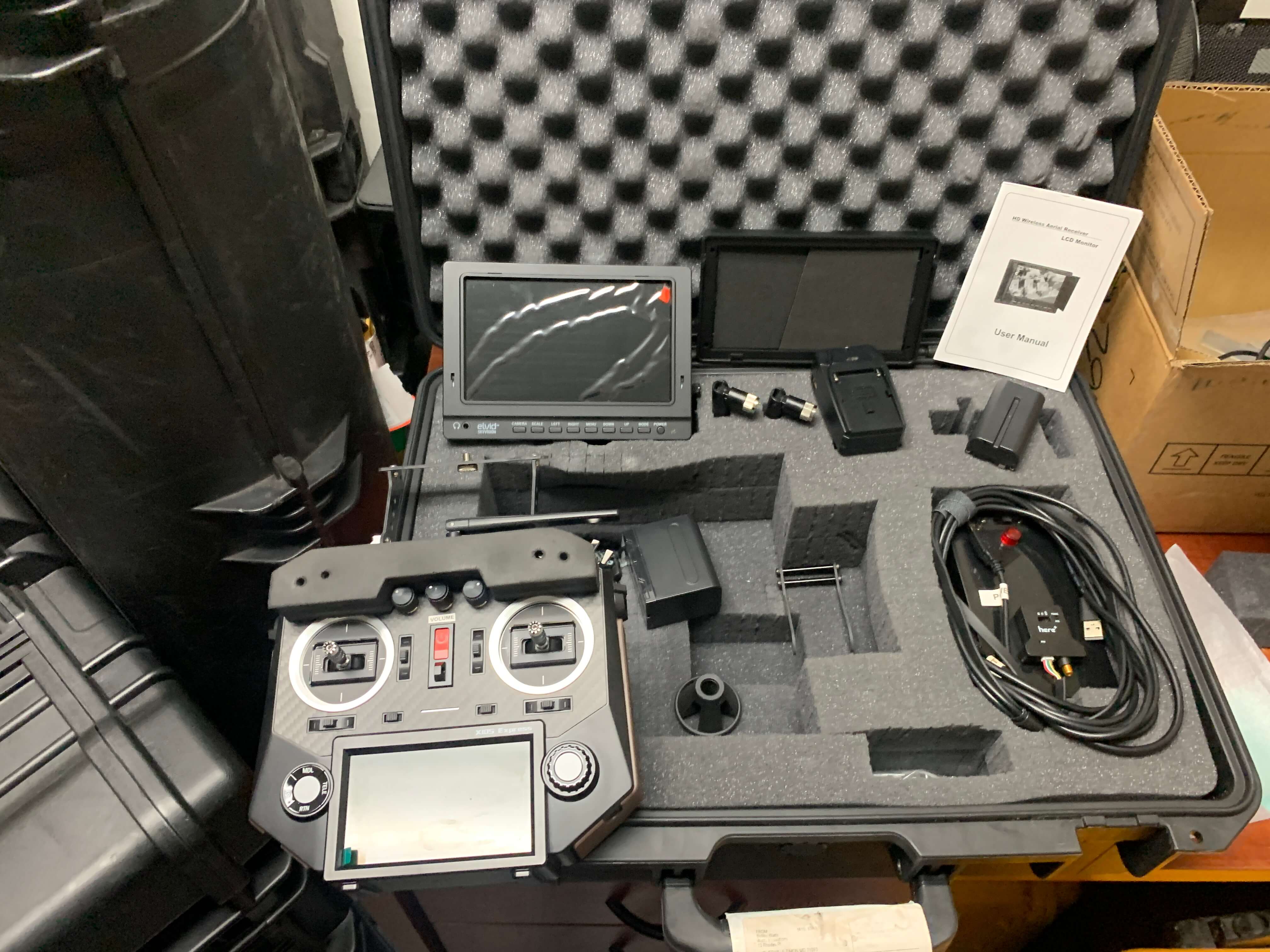

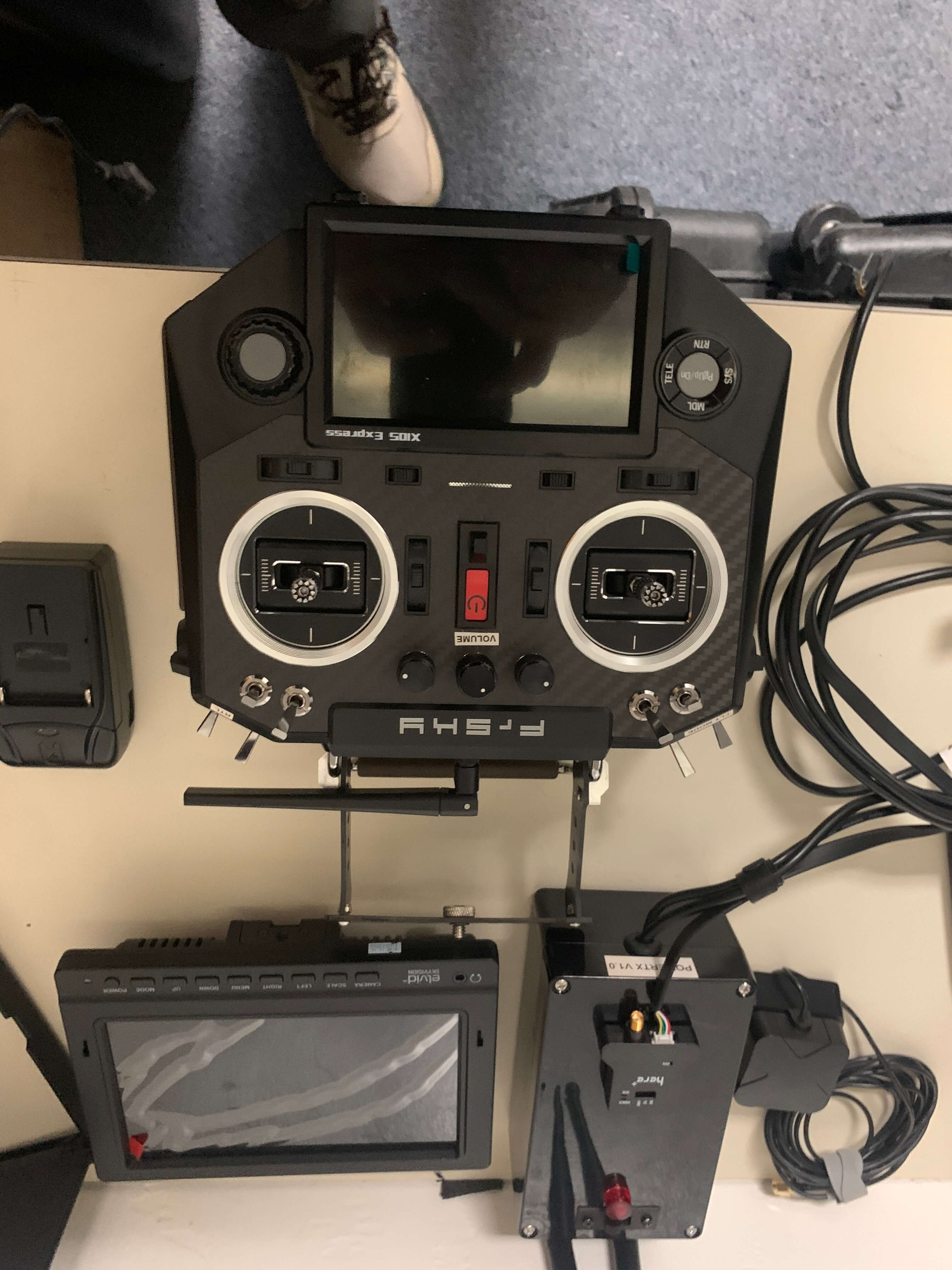

- FrSky Horus X10 Radio with Telemetry Widget Installed,
- 2.4ghz Transmission (Shows real-time aircraft altitude, speed, battery voltage/ milli-amp consumption, flight mode, artificial horizon, among others)
- RFD900X Data Link (Requires a Laptop to initiate waypoint missions via QGroundControl / Mission Planner)

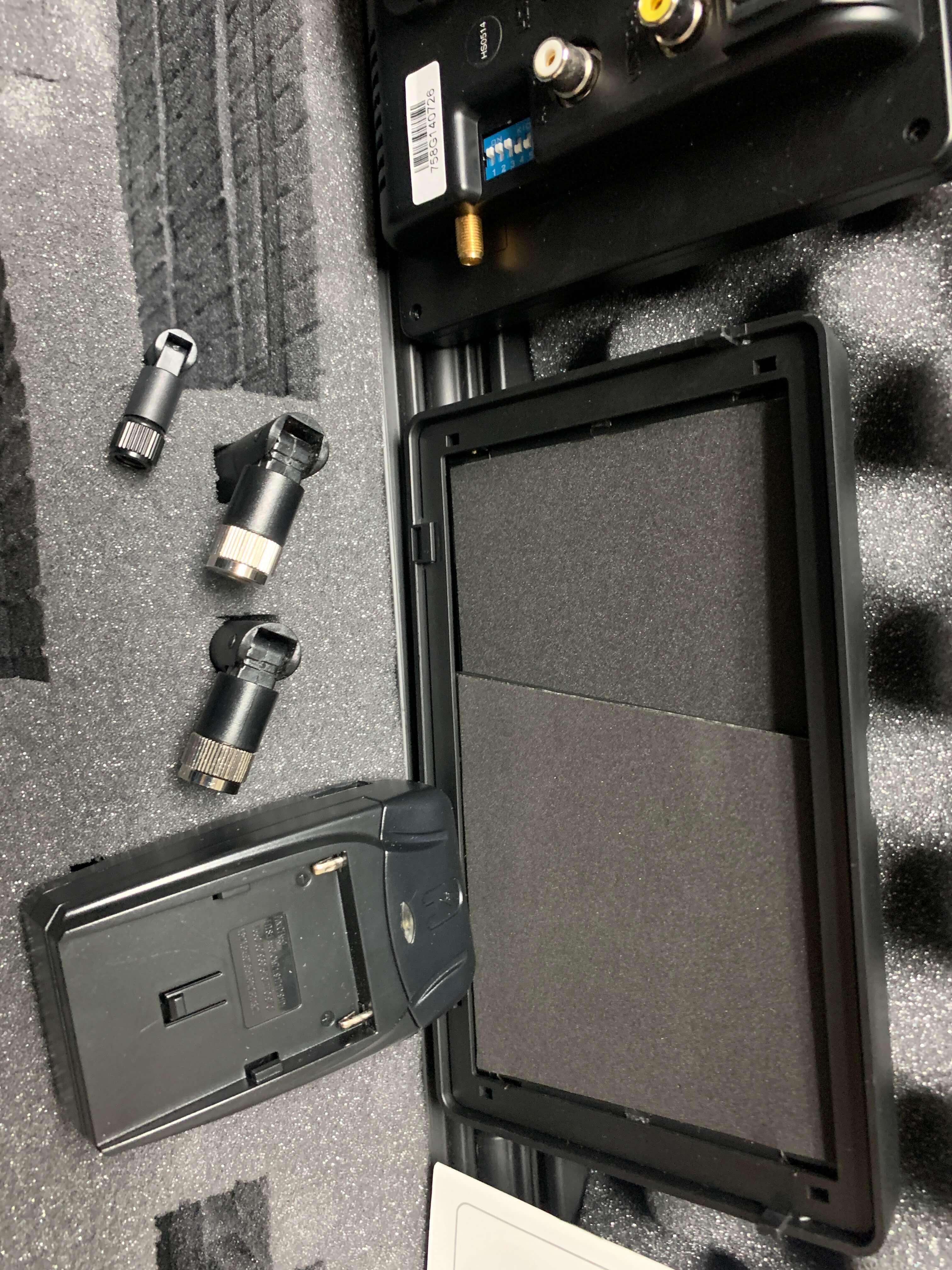

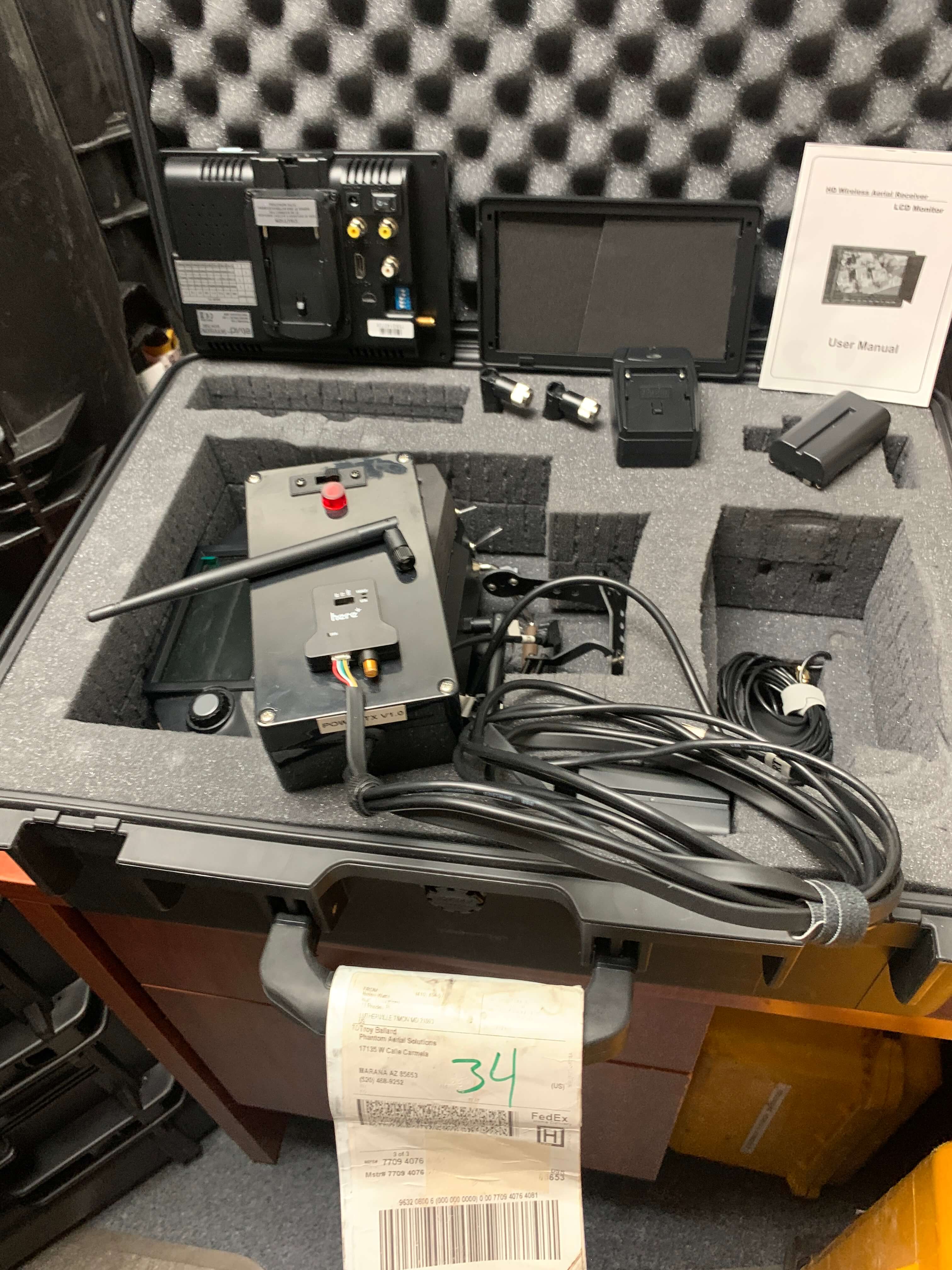

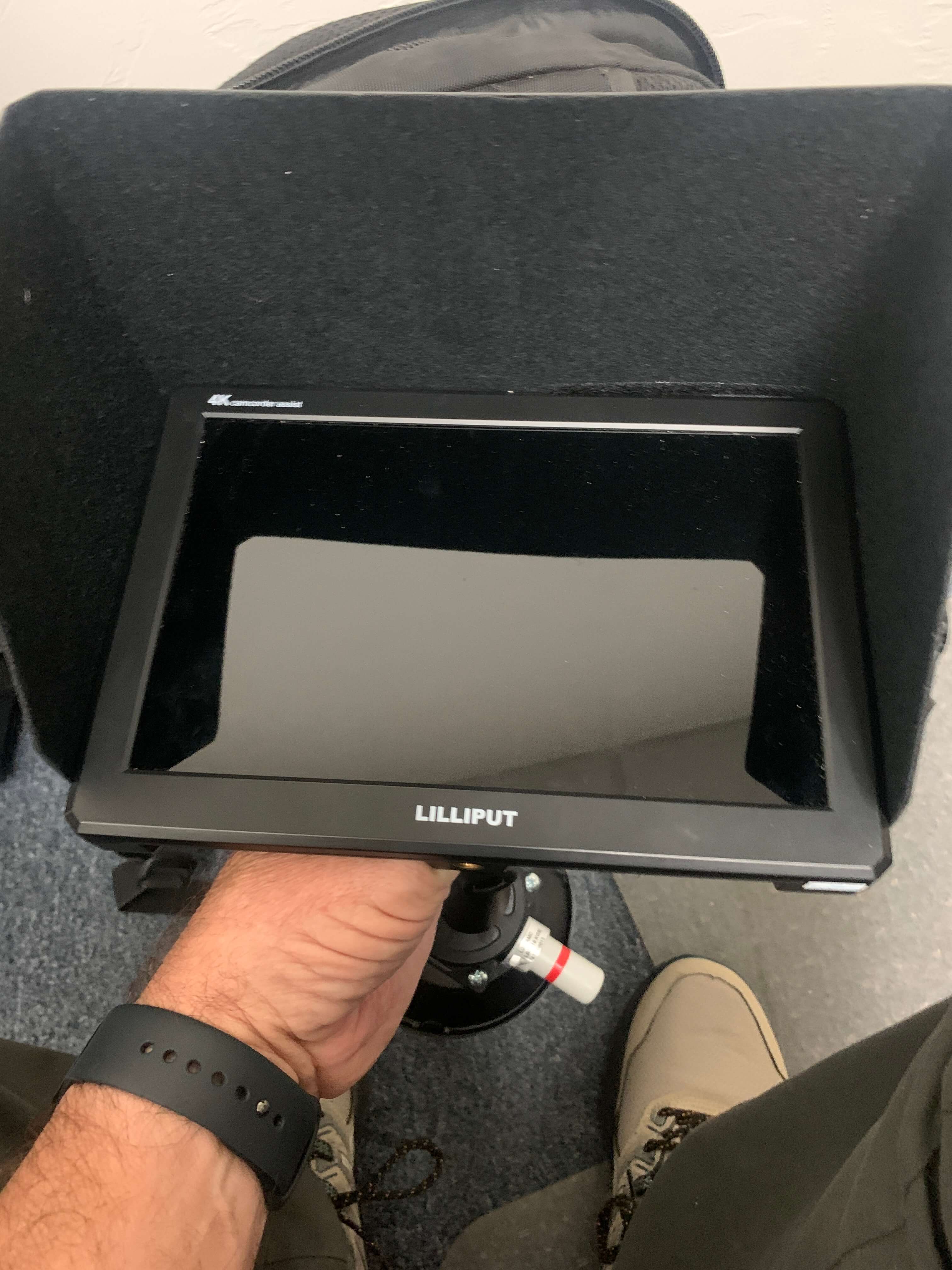

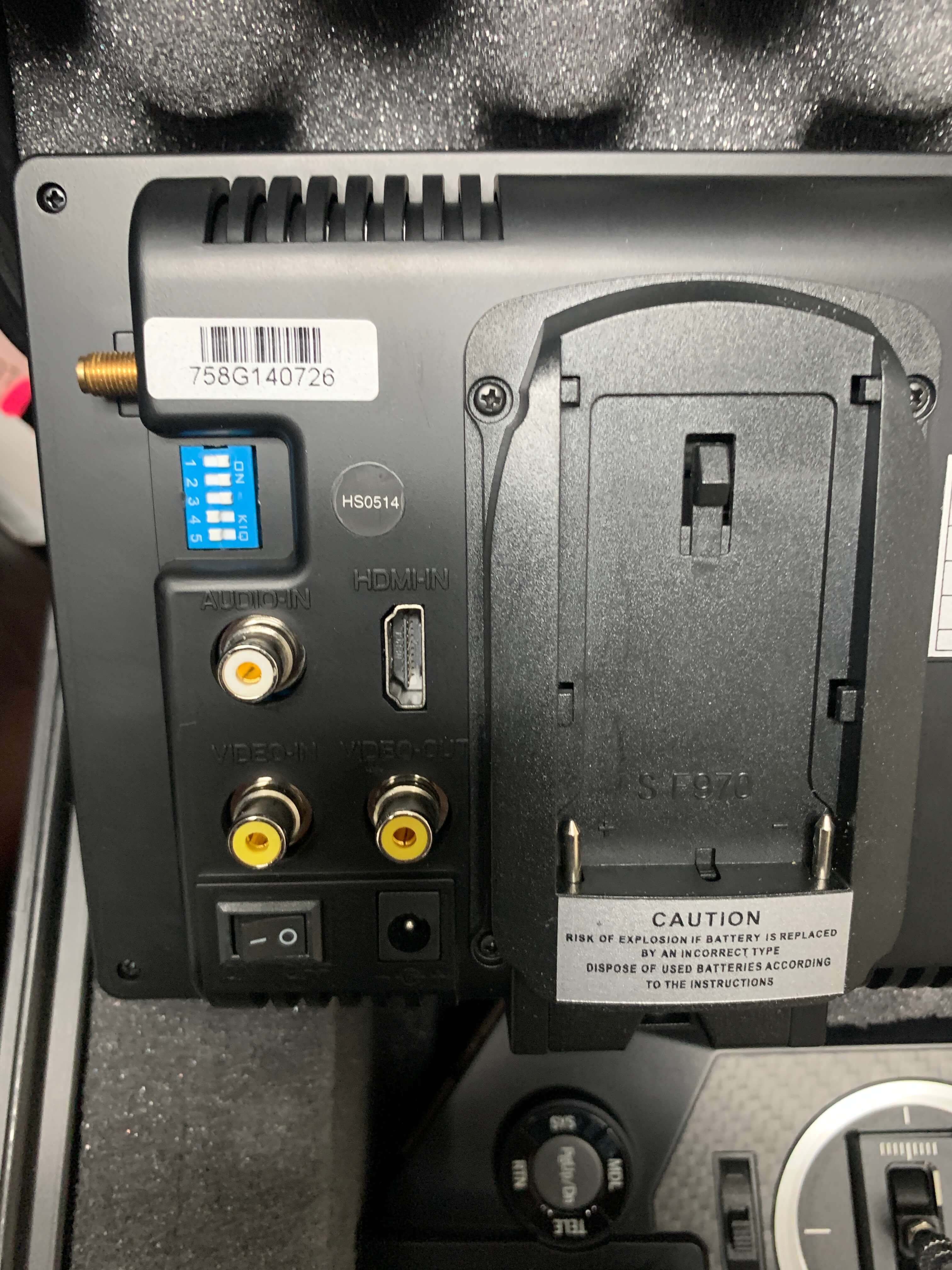

- Runcam Standard Definition FPV Camera & 5.5"" Monitor, mounted to Transmitter, 5.8ghz
- Fixed, Foldable 25mm Landing Gear
- Voltage regulators and 12mm mounting rails for Phoenix LiDAR Ranger

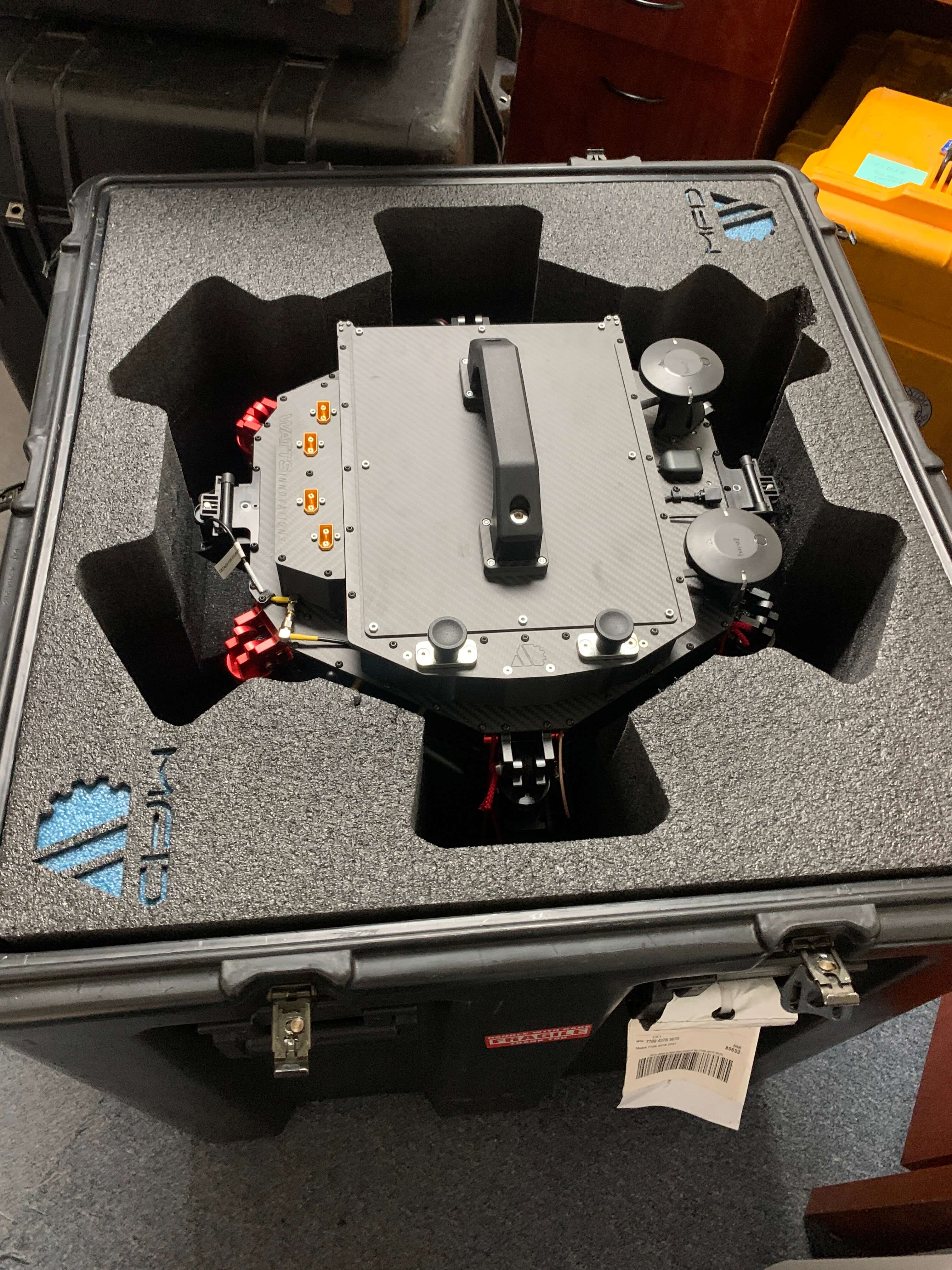

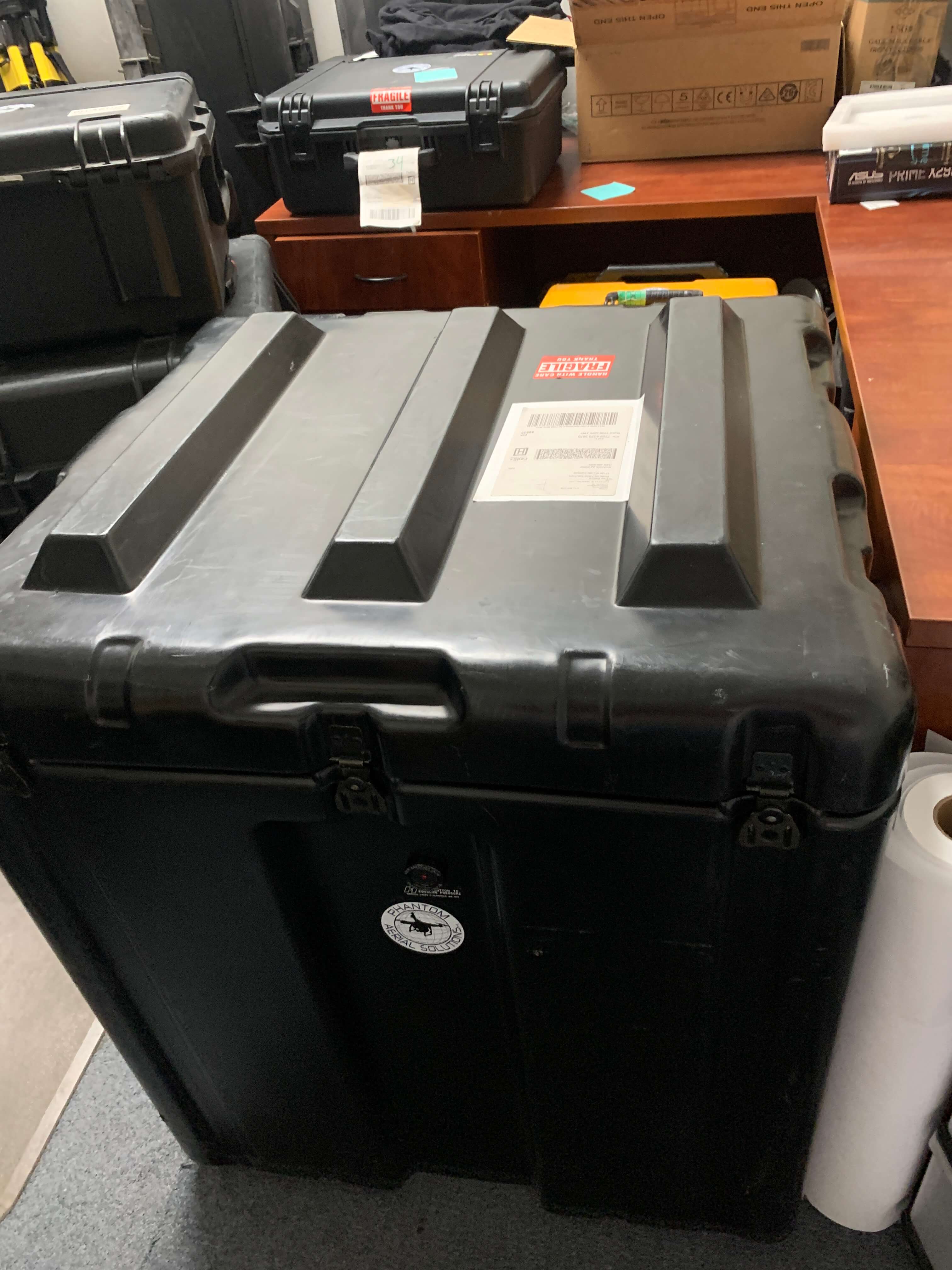

- Travel Cases For Aircraft (Pelican AL 2624-2703 with removable caster wheels) and Radios (Pelican/SKB or similar) with custom foam for Aircraft
- Quick Release Battery Tray System with 6 carbon fiber battery tray plates

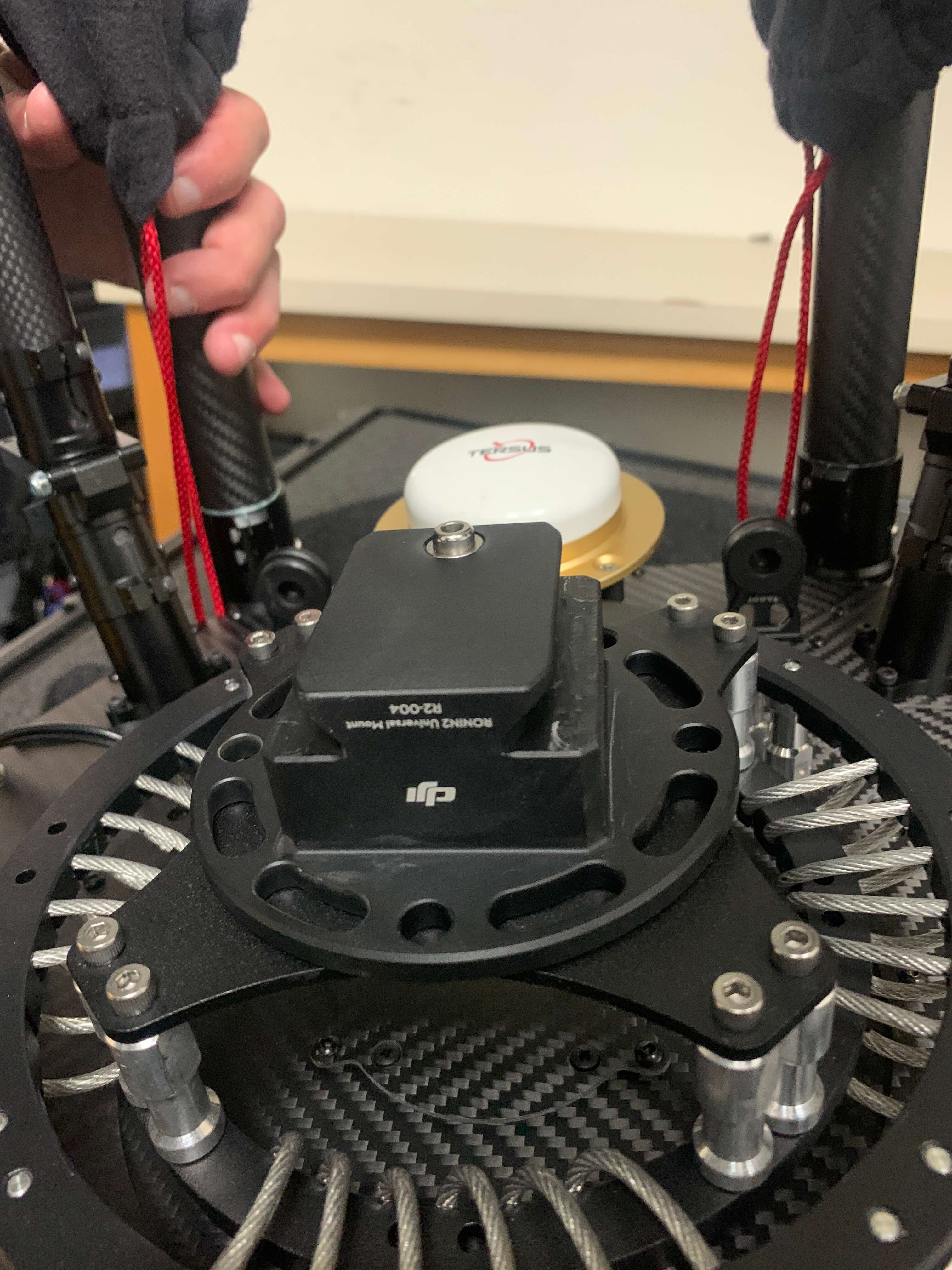

- Cinema Iso Wire Dampener + Mounting Brackets, tuned for Freefly Movi Pro Toad in the Hole & Ronin 2
- Battery packs assembled & mounted onto battery trays
- MAUCH Power Cube with Current Sensor
- Built-in XT-90S connectors into the main frame
- Full Carbon Fiber Frame Construction ADS-B Integration

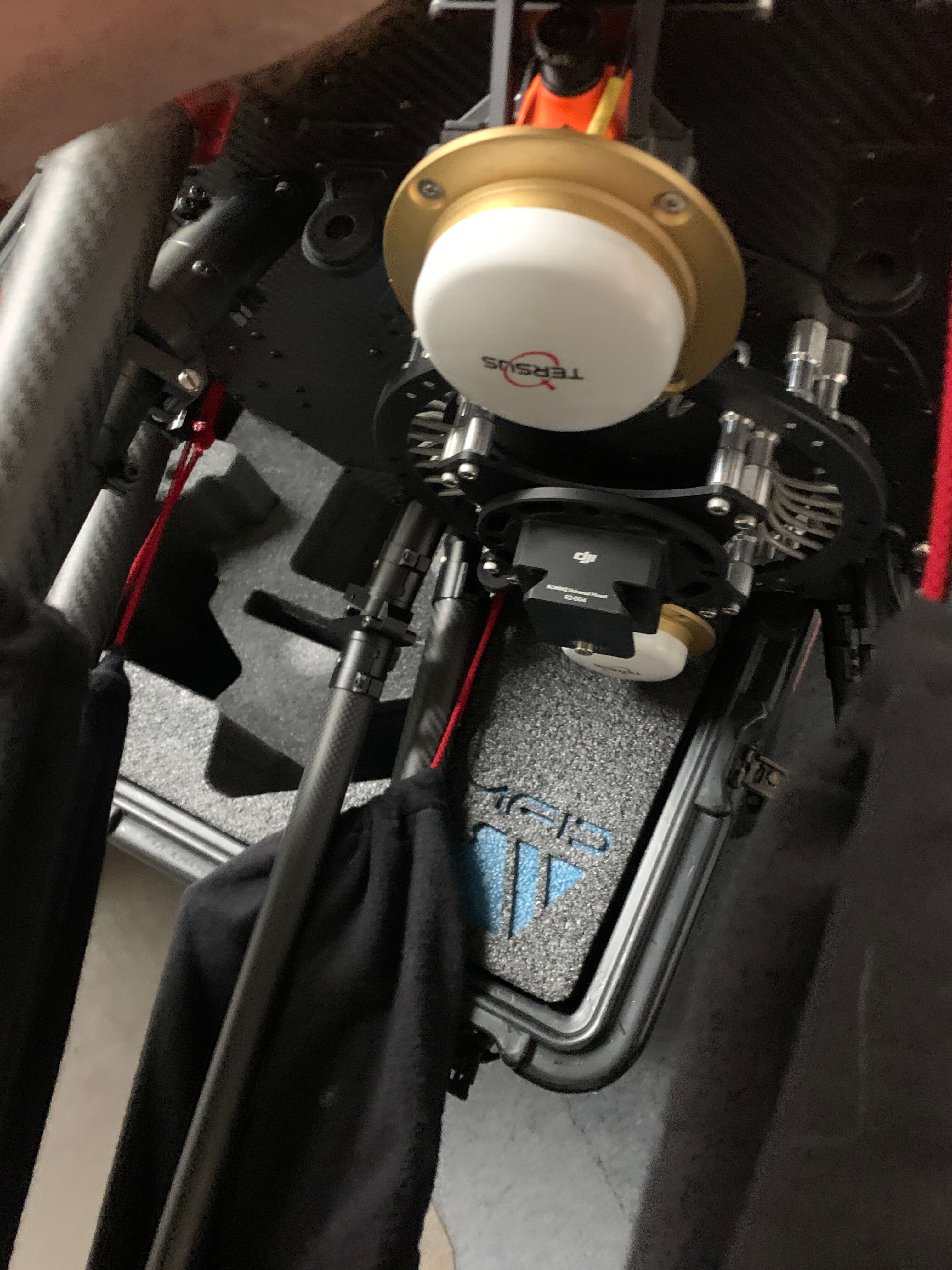

- Tersus BX316 RTK Package + Installation

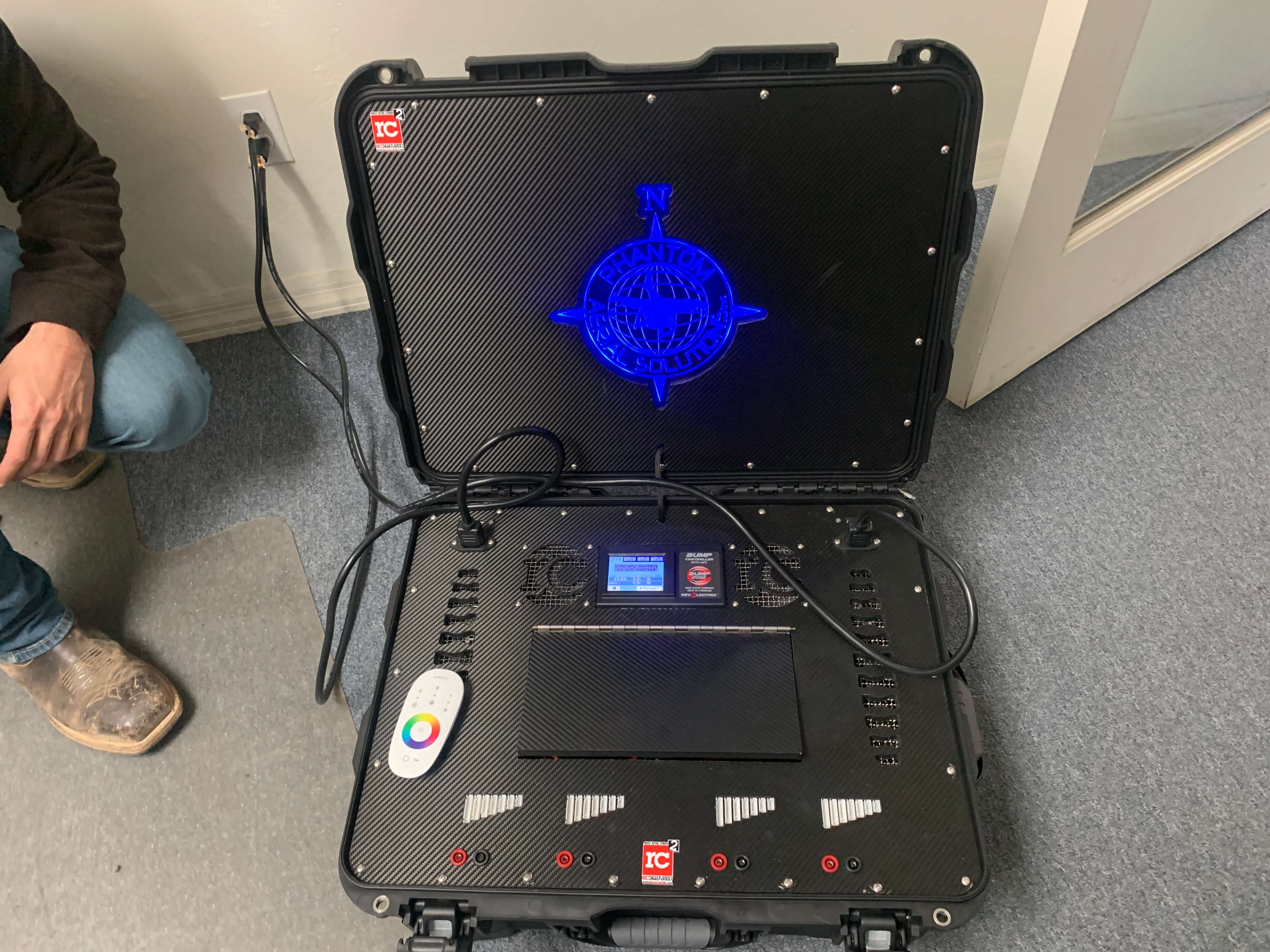

- Custom charge case that allows rapid charging within 30 minutes of one set of batteries. Includes four Powerlab PL6

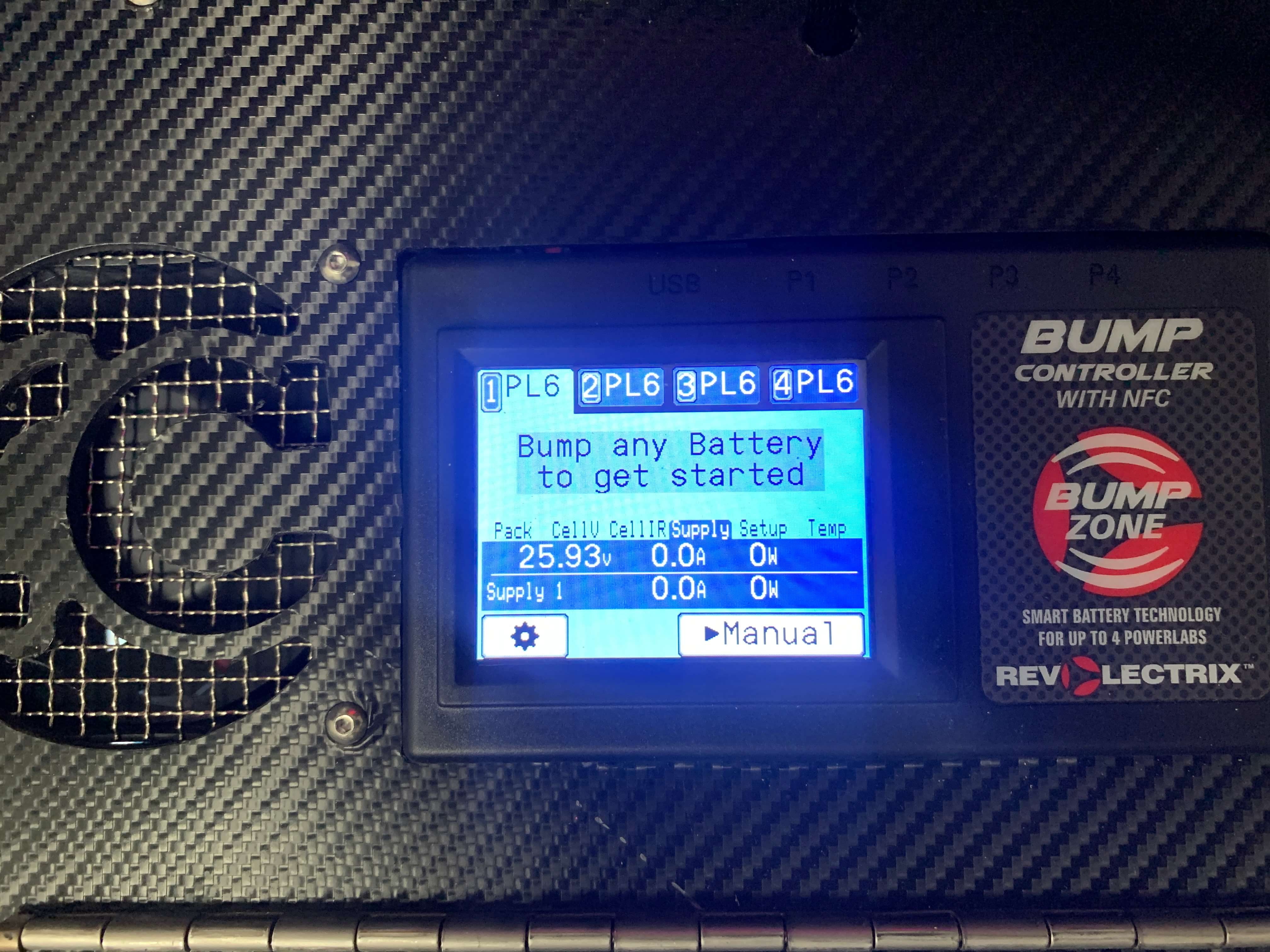

- Chargers with Bump Controller (Allowing RFID tags on each battery separately) with 2x Meanwell 2000W power supplies all custom machined in a Nanuk waterproof case. Includes power cables + balance extension cables. Packaged in a Nanuk case with handle & wheels.
- SKB 3i-2015-10 Battery Case with Custom Foam Cutouts (Each case holds 3 sets of batteries)
- No batteries included
Optional DJI Ronin 2 Pro Gimbal may be added
