miniVUX-1UAV

2017 RIEGL miniVUX-1UAV LiDAR system

System Components Included:

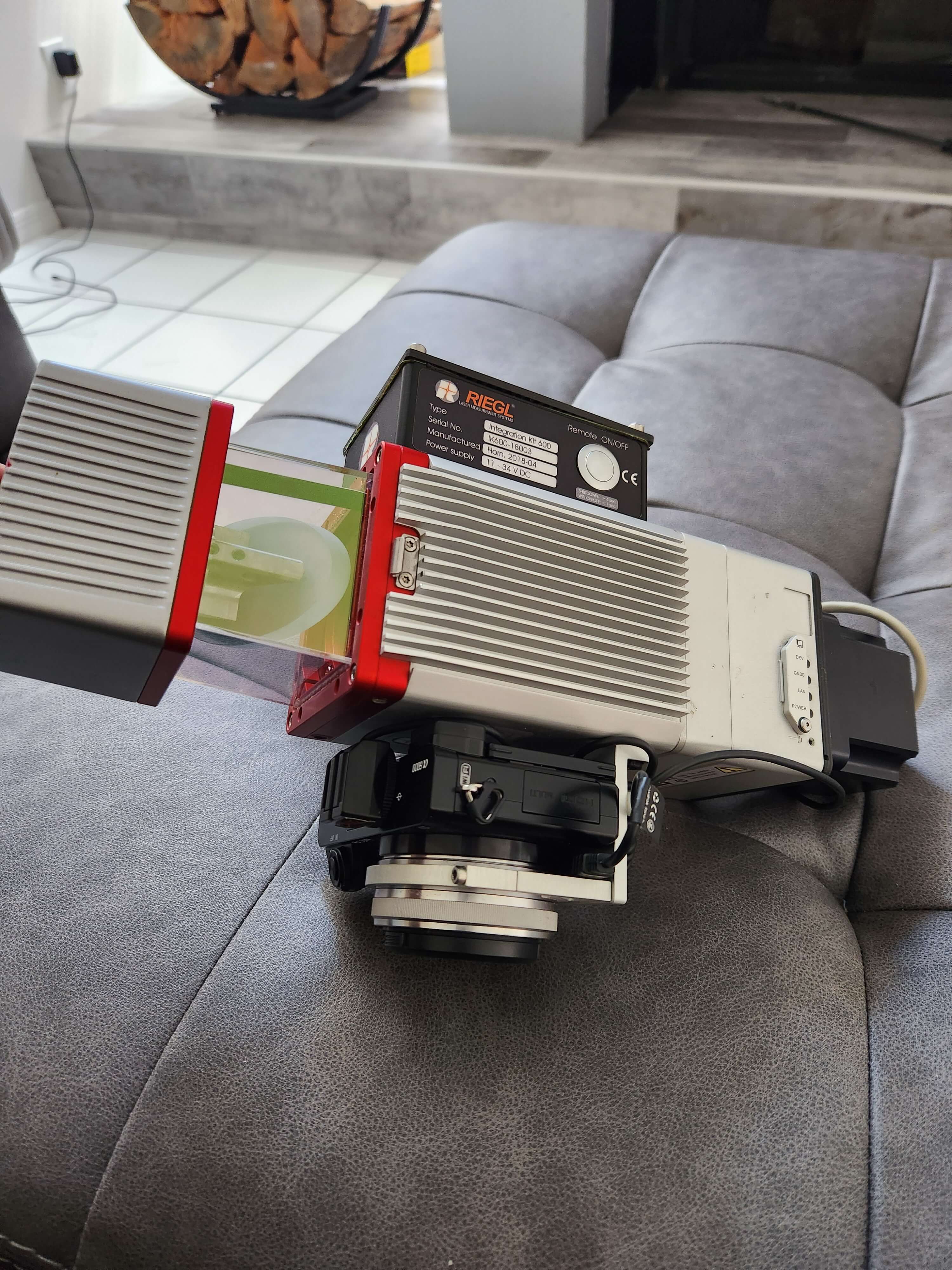

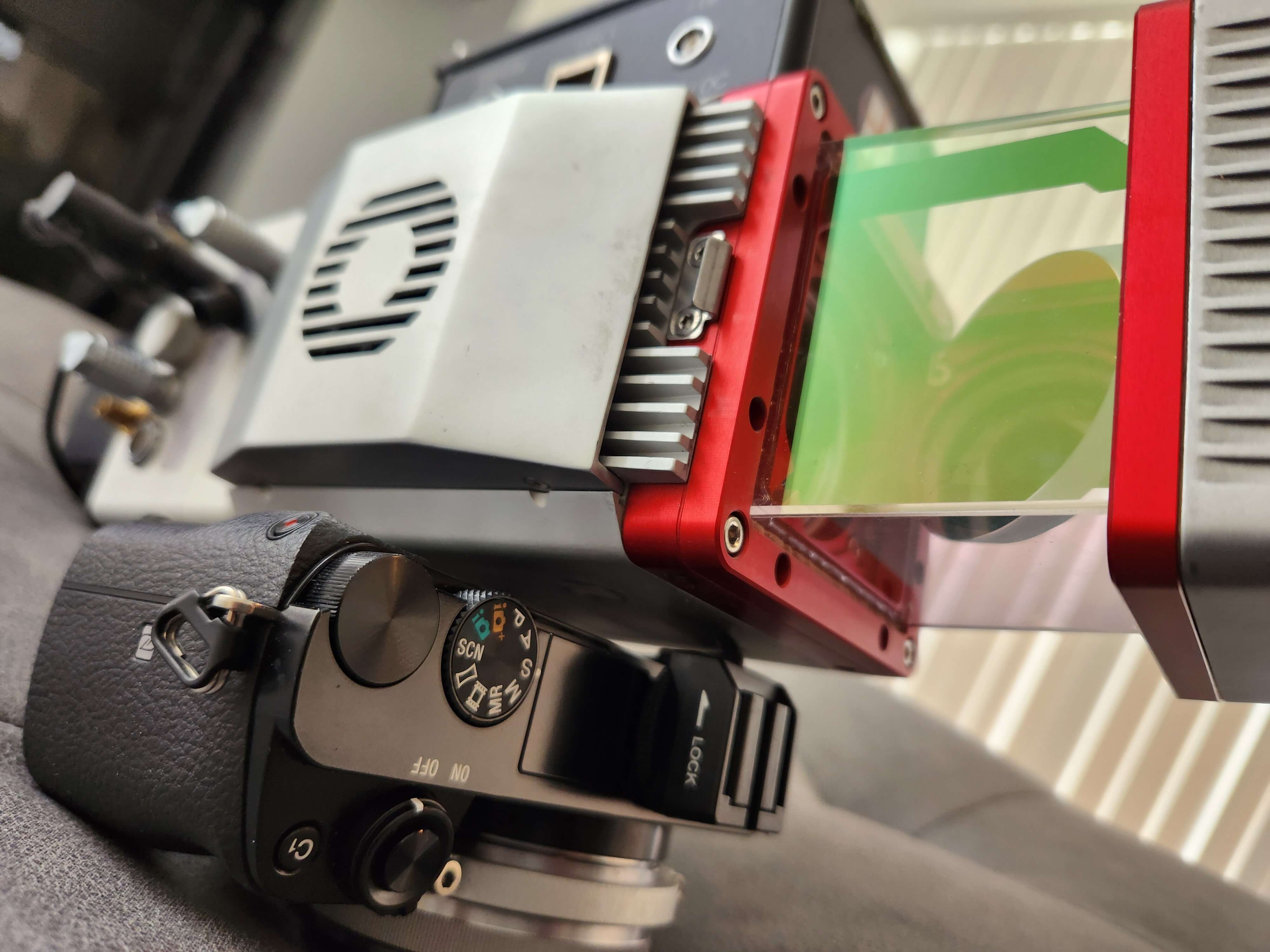

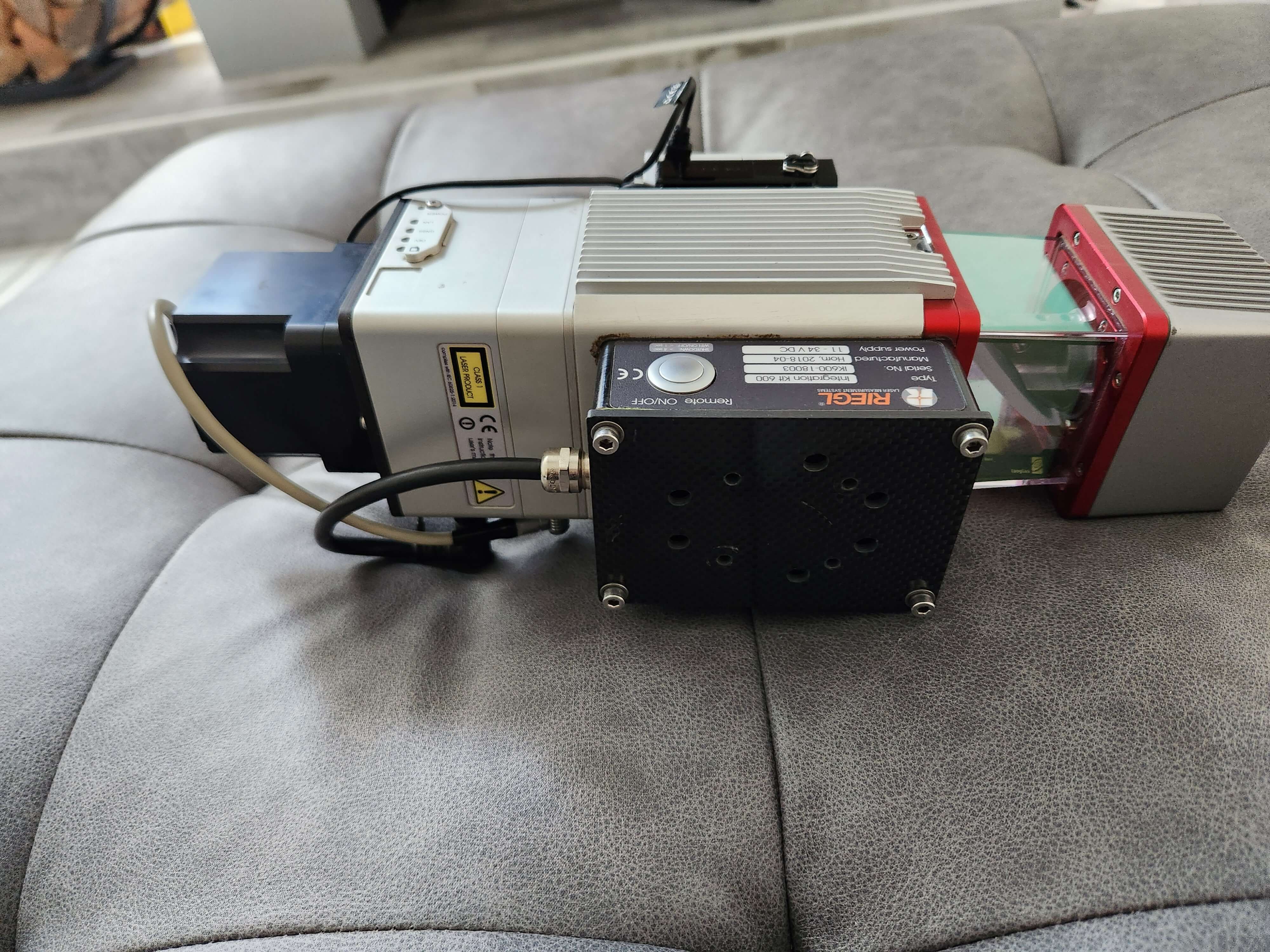

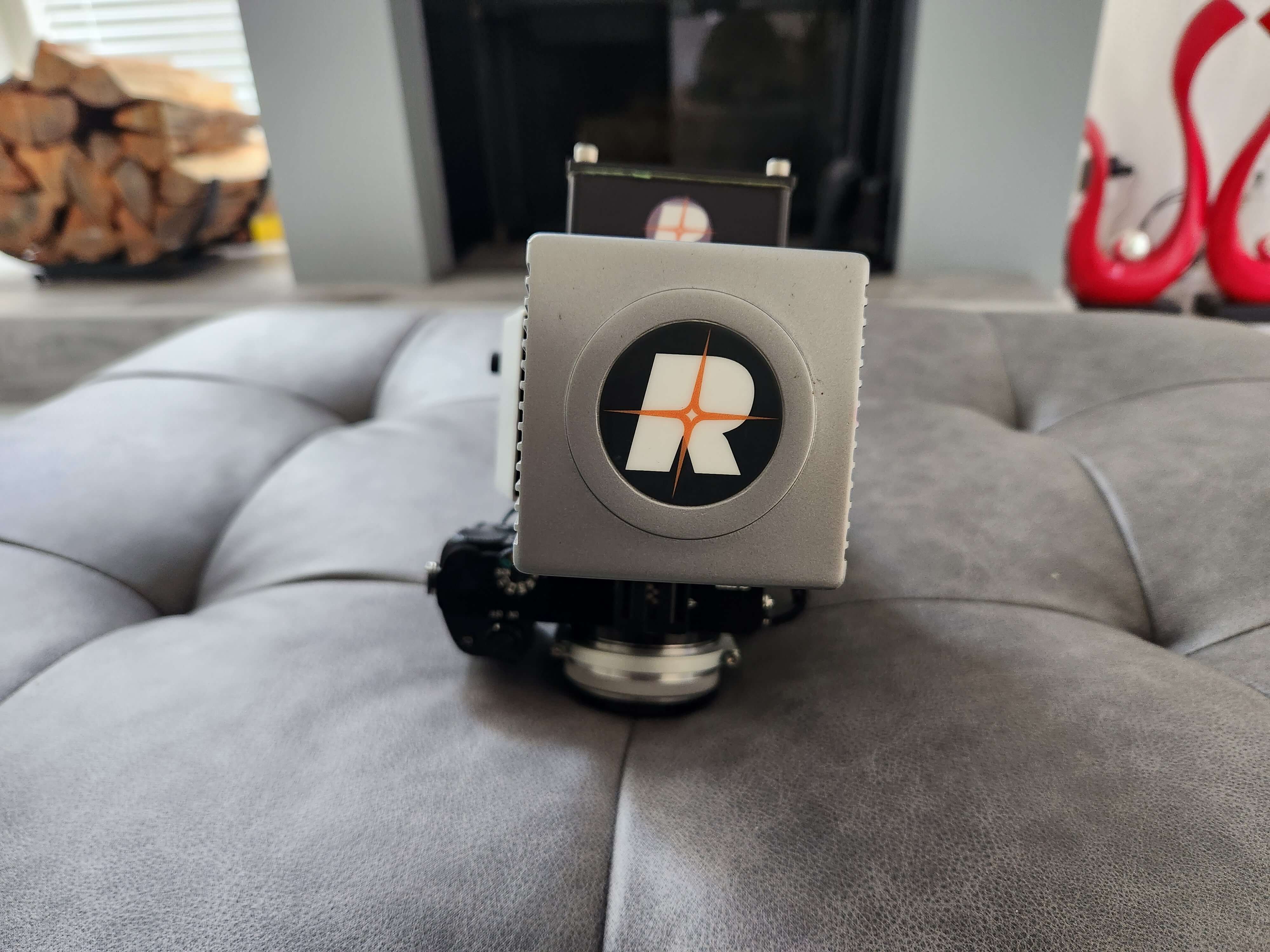

• RIEGL miniVUX-1UAV LiDAR sensor

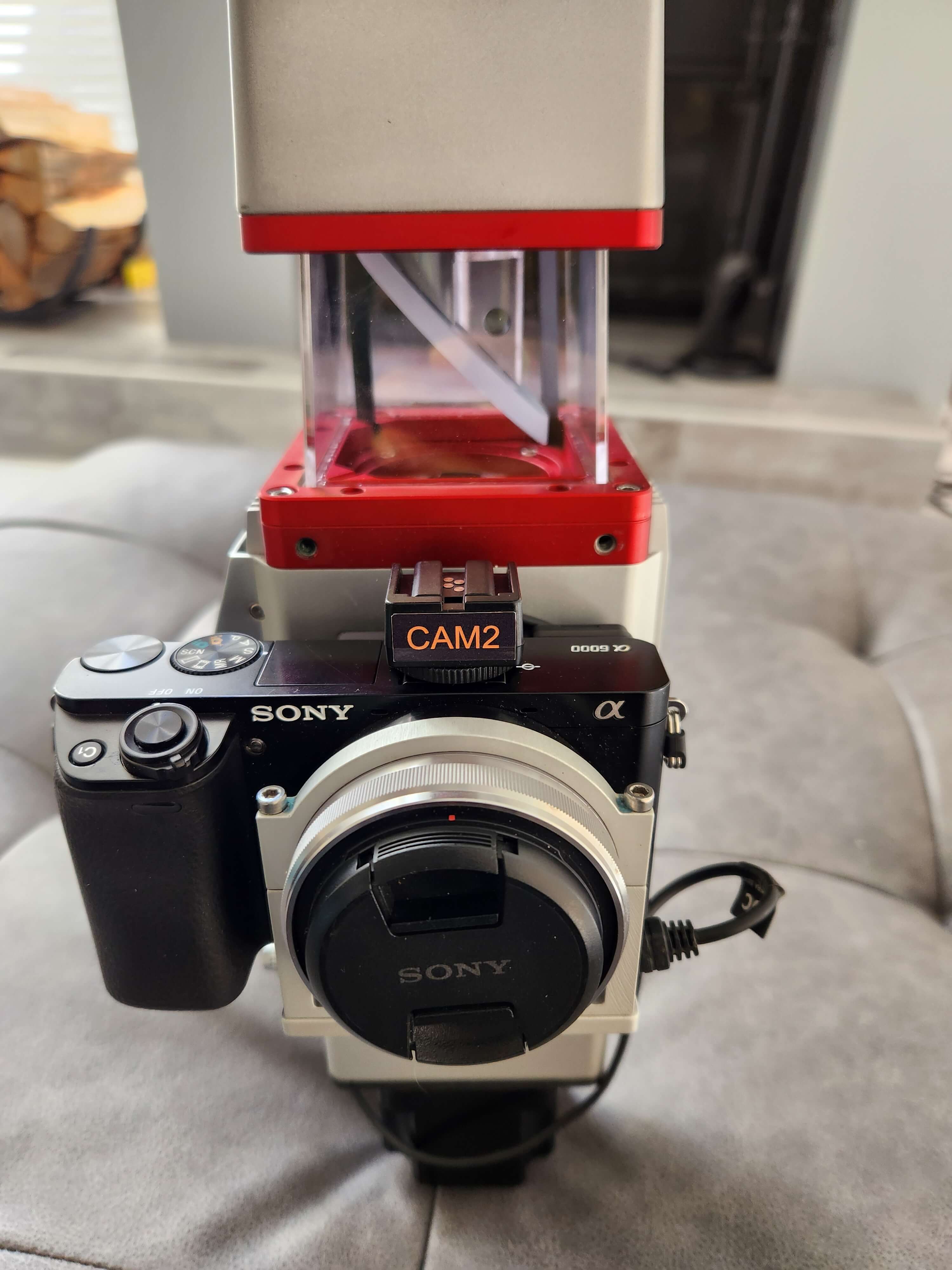

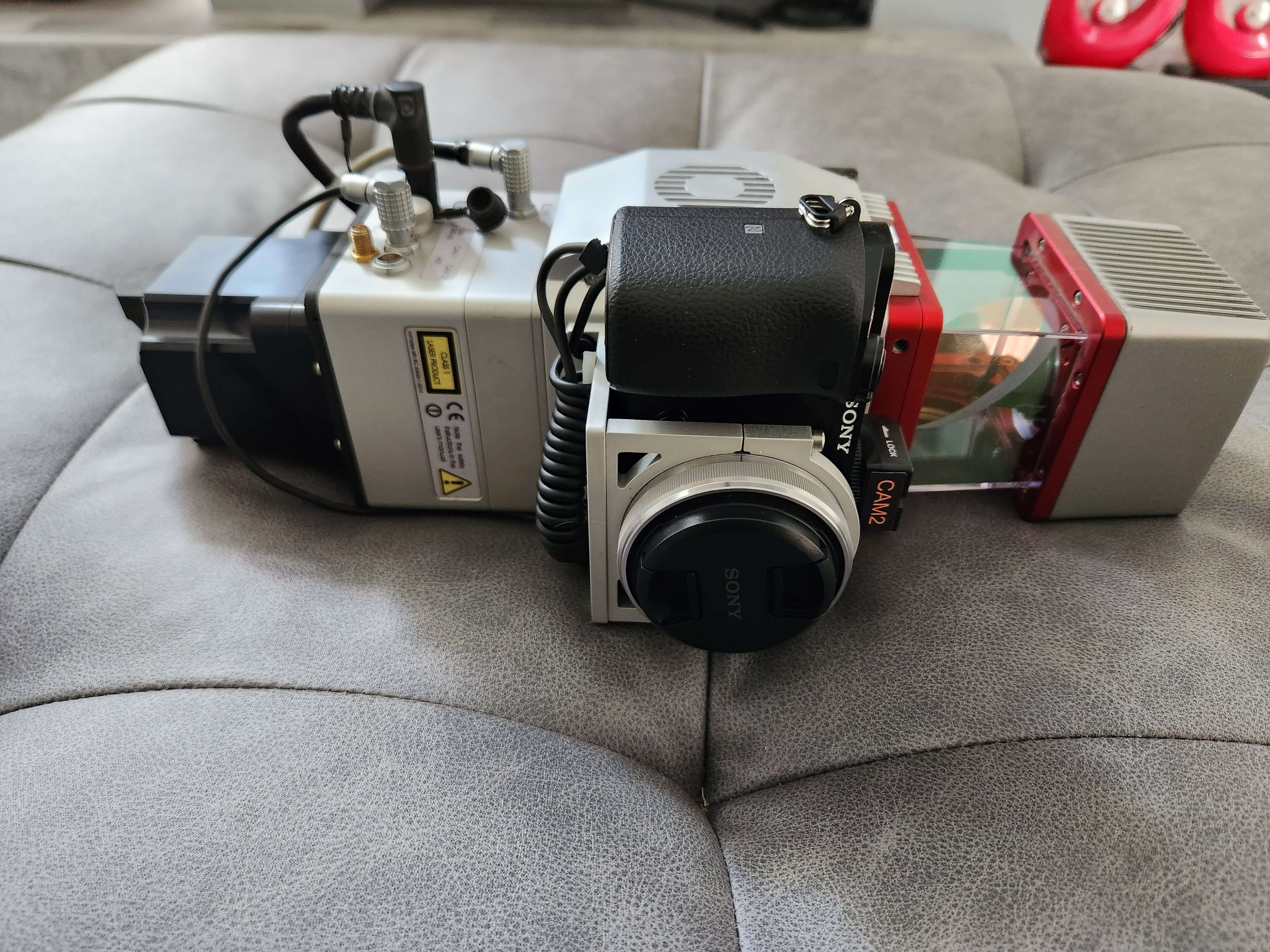

• Sony A6000 camera with 16mm lens
• RIEGL Integration Kit 600 (DJI M600 compatible, adaptable to other heavy-lift UAVs or manned platforms)
• APX-20 IMU (integrated GNSS/INS system)
• GNSS multichannel antenna

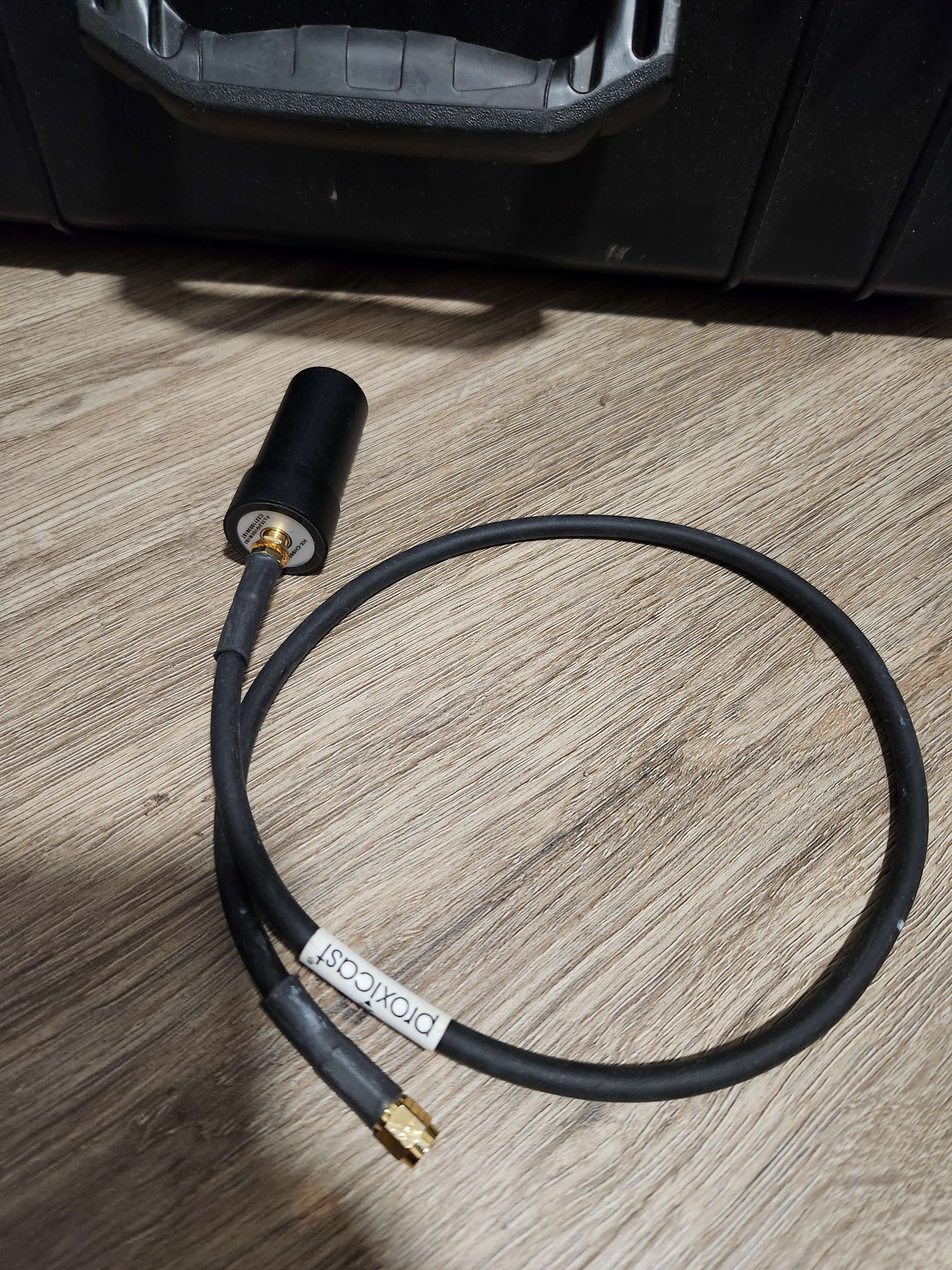

• Proxicast SMA Male to SMA Female coax cable (50 Ohm)

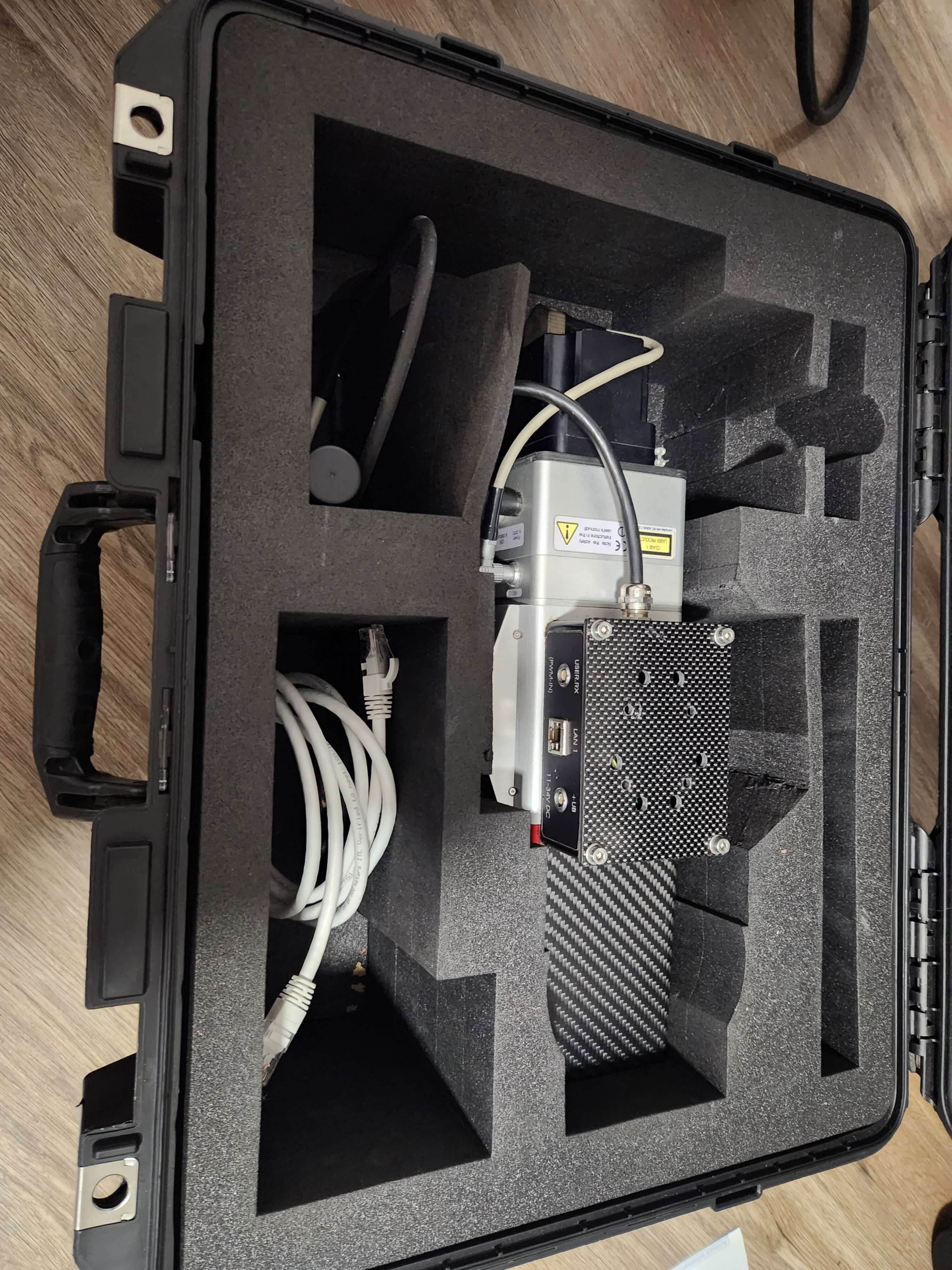

• Associated cabling and mounting hardware (as shown)

Software:

• No POSPac license included
• No RiPROCESS license included

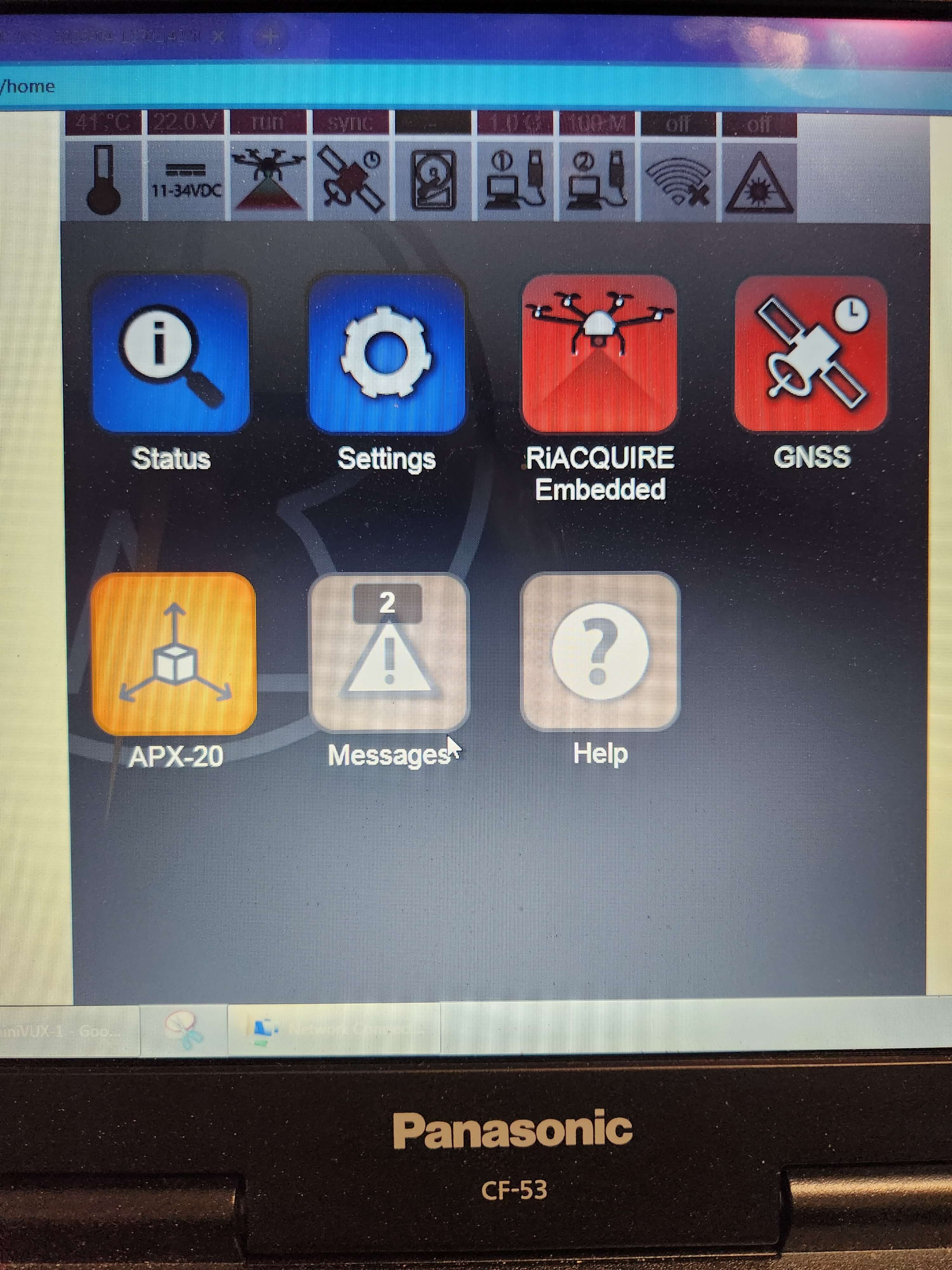

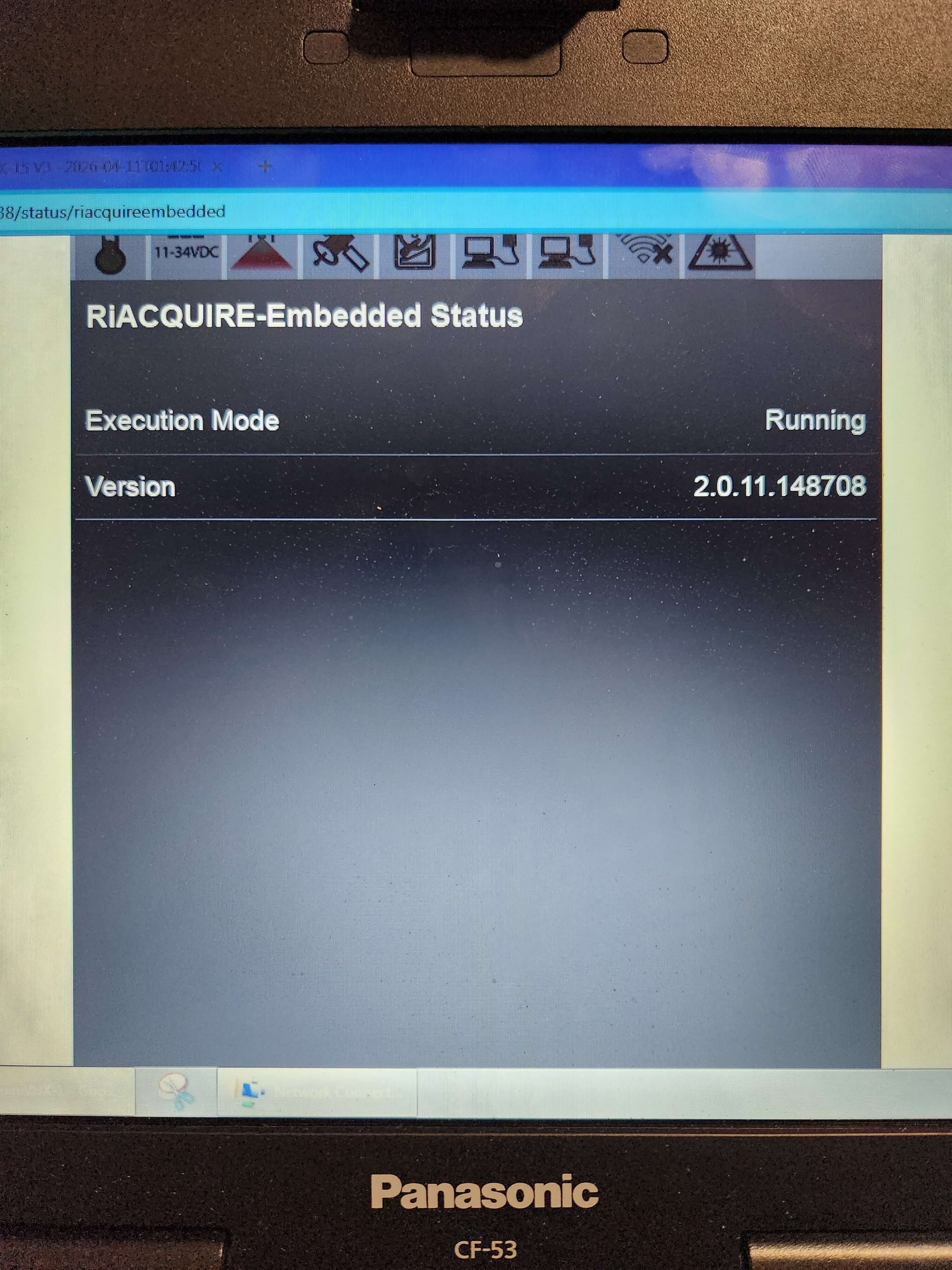

• System runs RiACQUIRE Embedded (v2.x) onboard for data acquisition
• Buyer will need their own processing workflow for trajectory and point cloud generation.

IMU / Navigation:

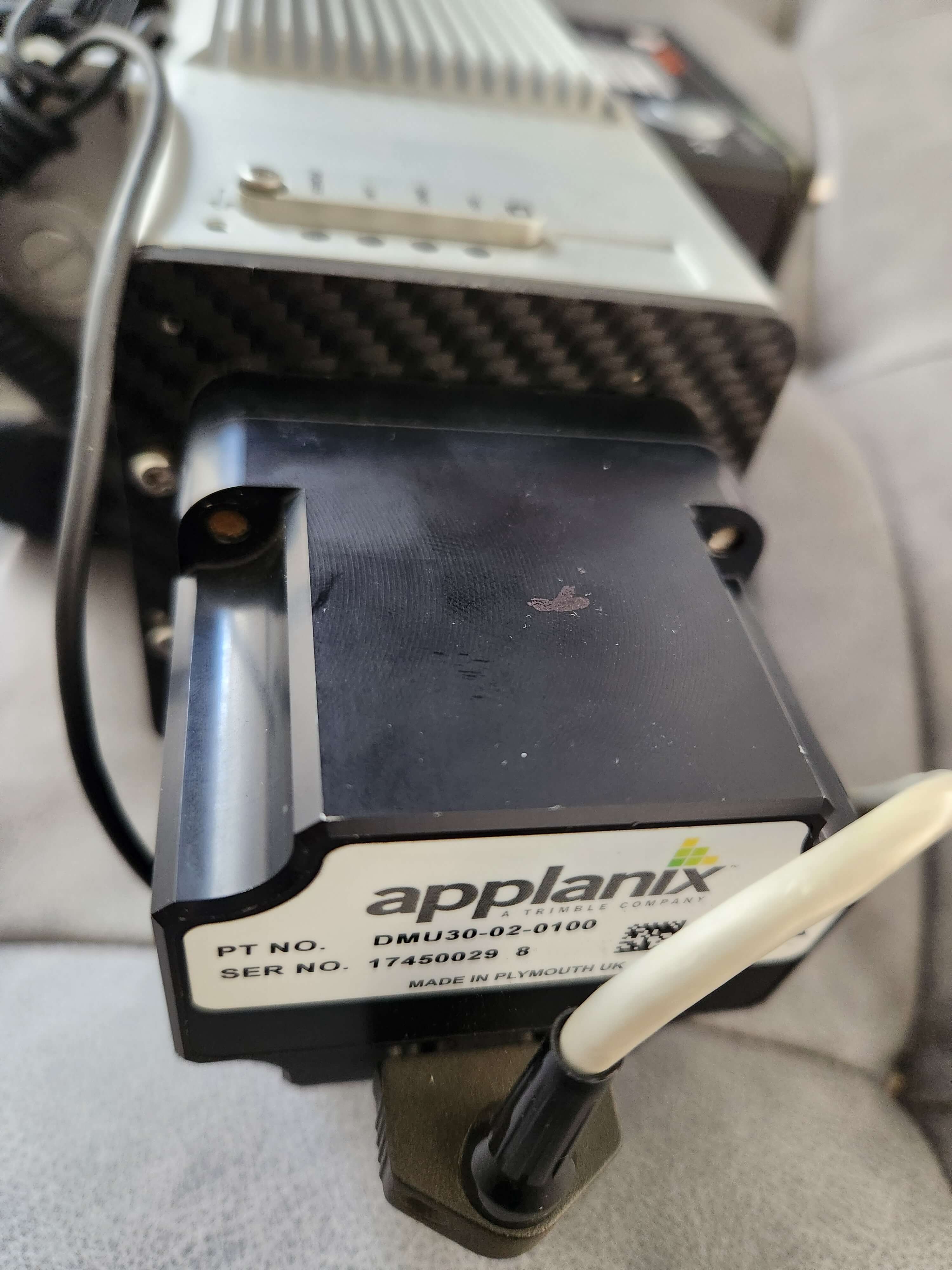

• Includes APX-20 IMU
• No separate flight management system (FMS) included

Condition / Notes:

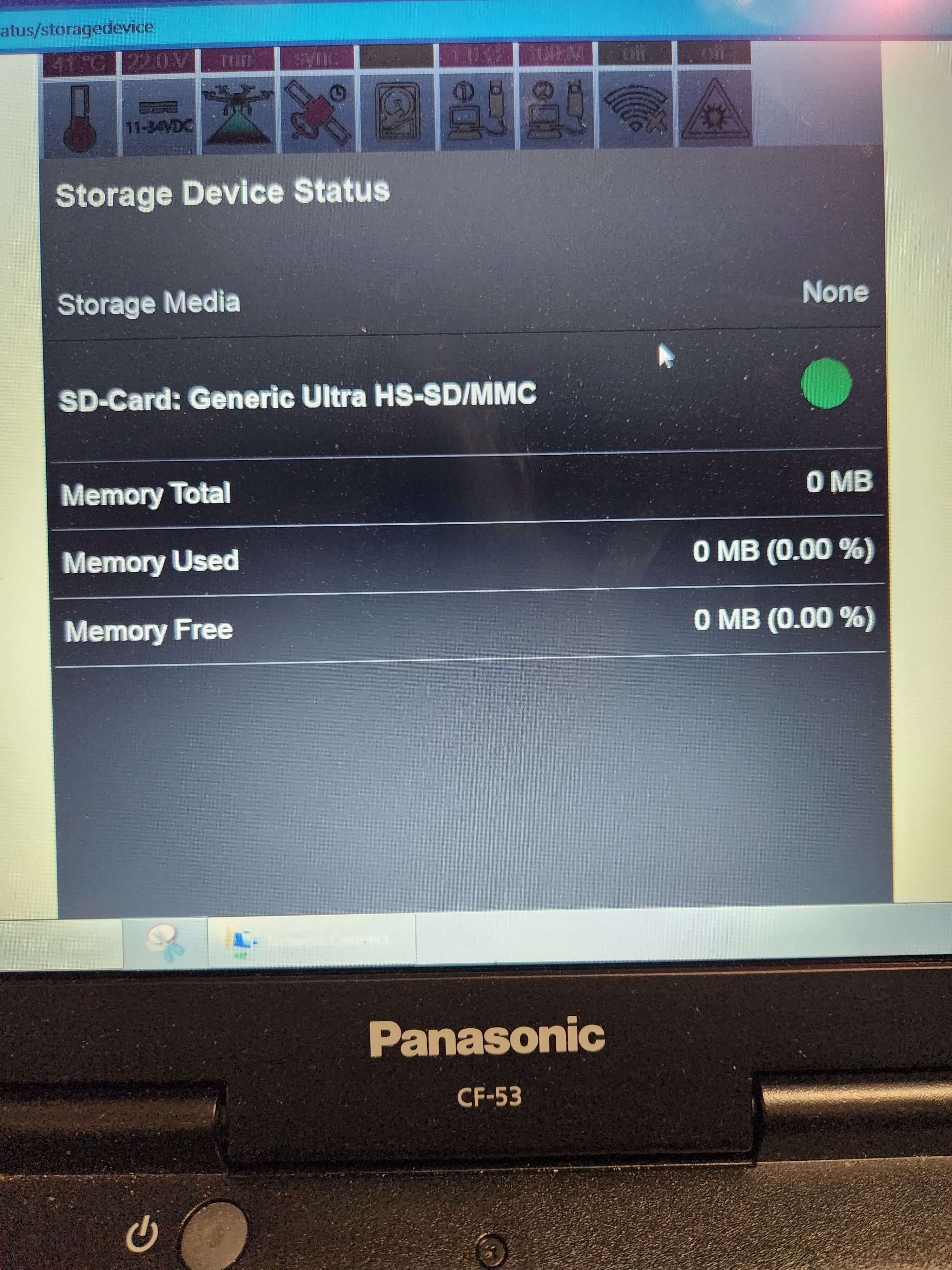

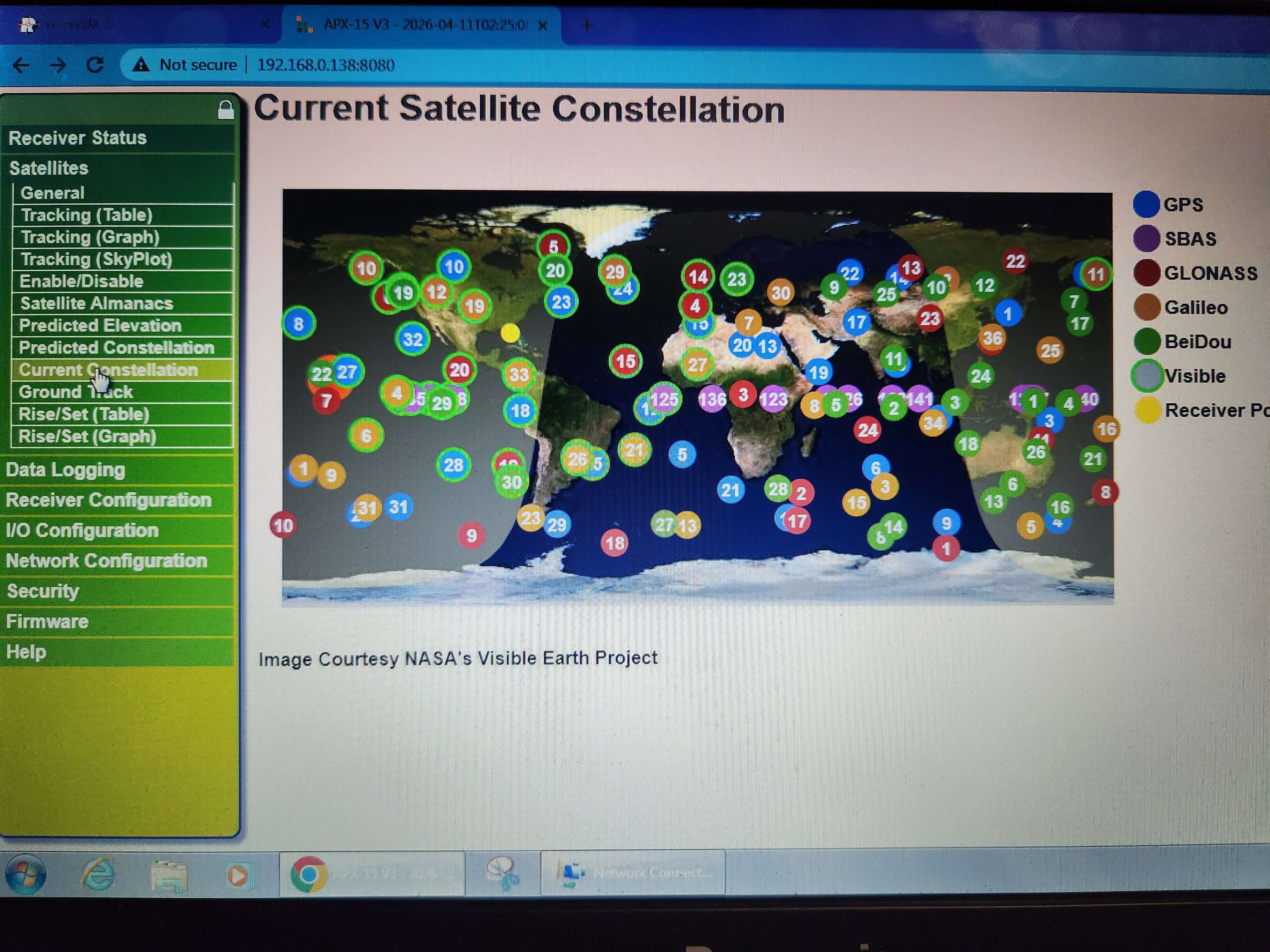

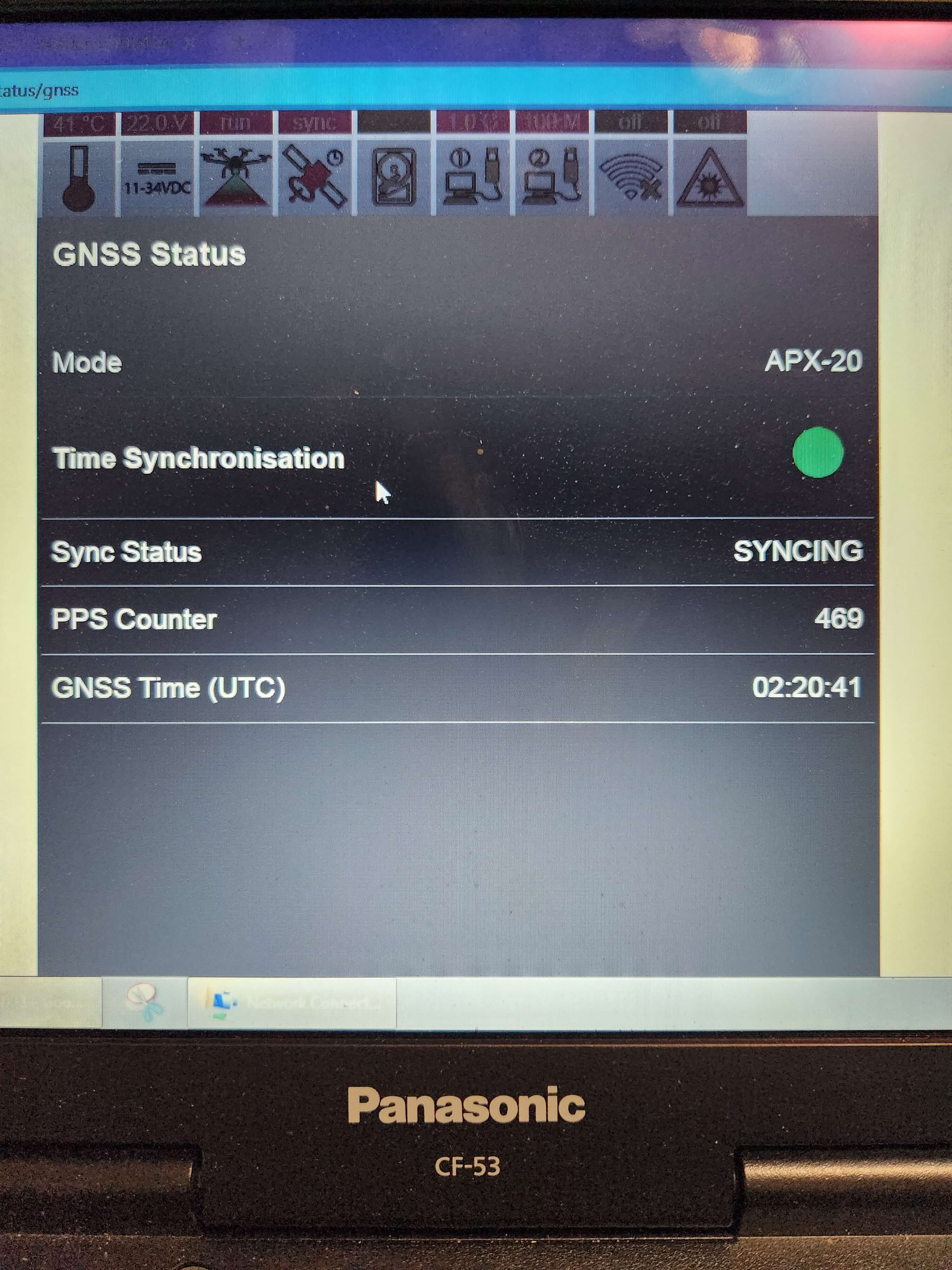

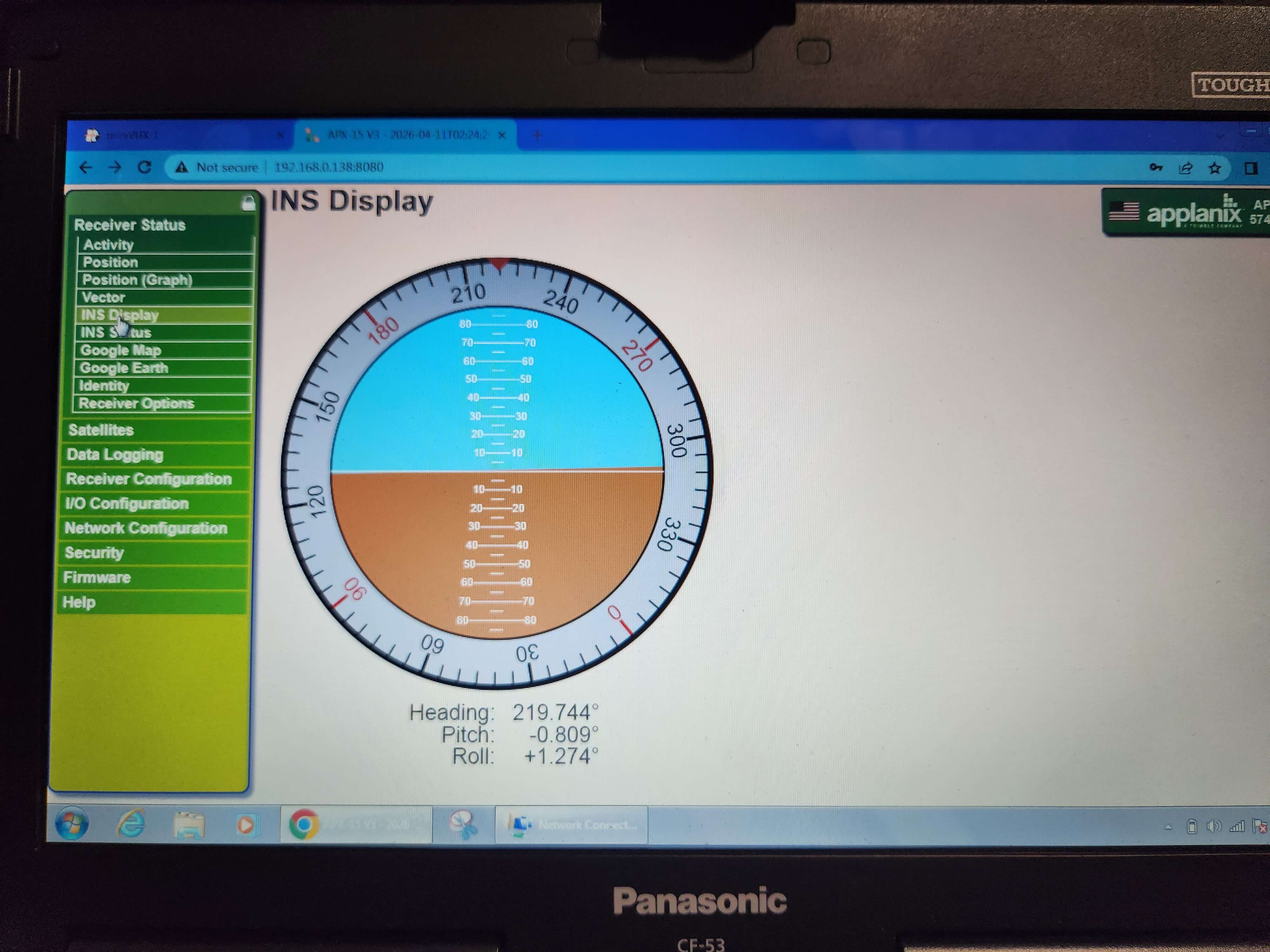

• System powers on, initializes properly, and is accessible via onboard interface. GNSS timing and synchronization are active.
• Sony A6000 with 16mm f/2.8 lens - Estimated shutter count is under 20,000 actuations (typical for systems used primarily alongside LiDAR acquisition rather than high-volume photogrammetry).

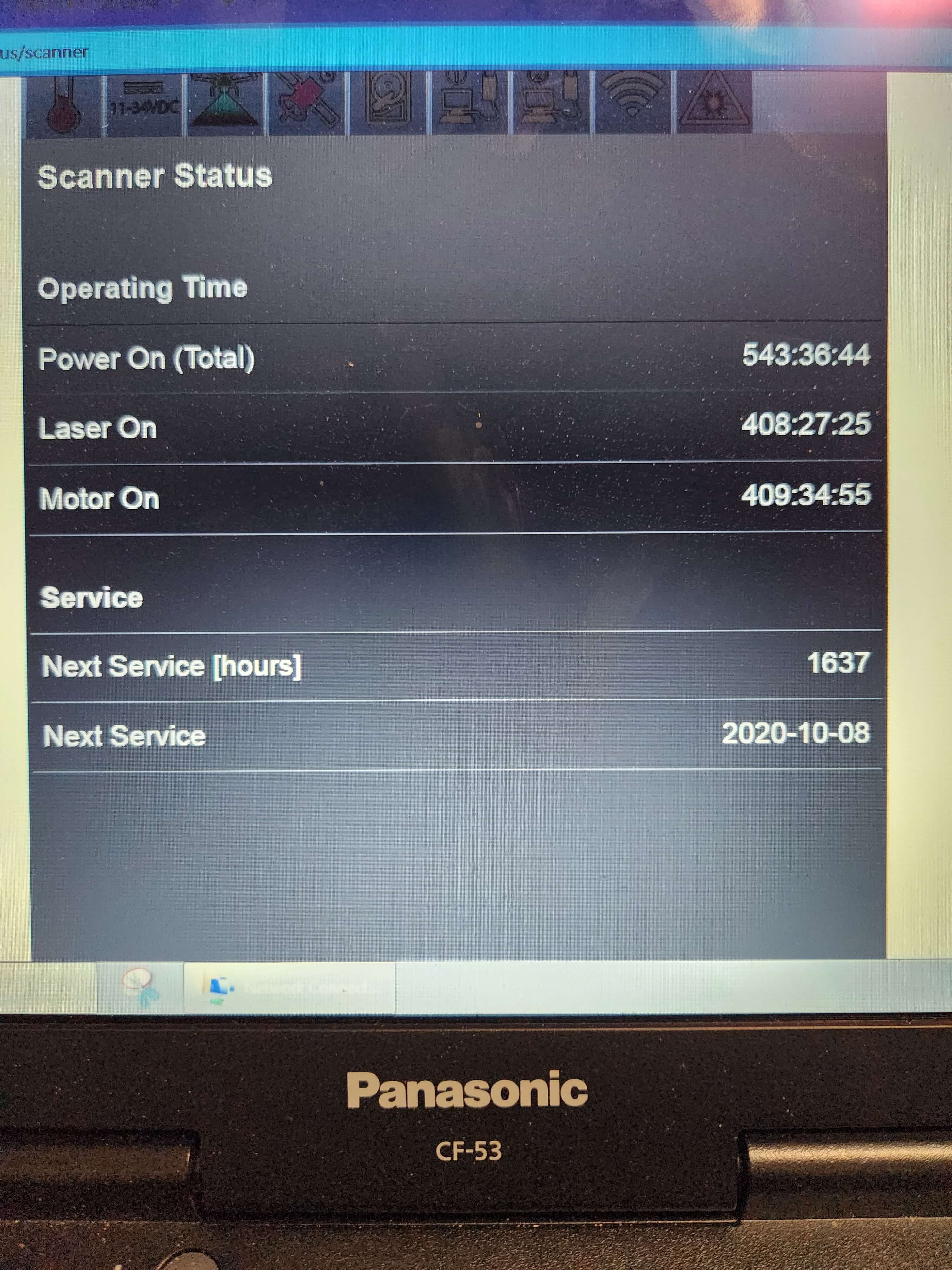

• LiDAR Usage:
  • Power On: 543 hours
  • Laser On: 408 hours
  • Motor On: 409 hours
  •  Last calibration date is unknown. A factory calibration/service through RIEGL is recommended for buyers requiring certified accuracy.

Buyer may consider RIEGL calibration and maintenance services if certification or updated performance validation is required.
