IGI Penta DigiCAM-280

IGI Penta DigiCAM-280

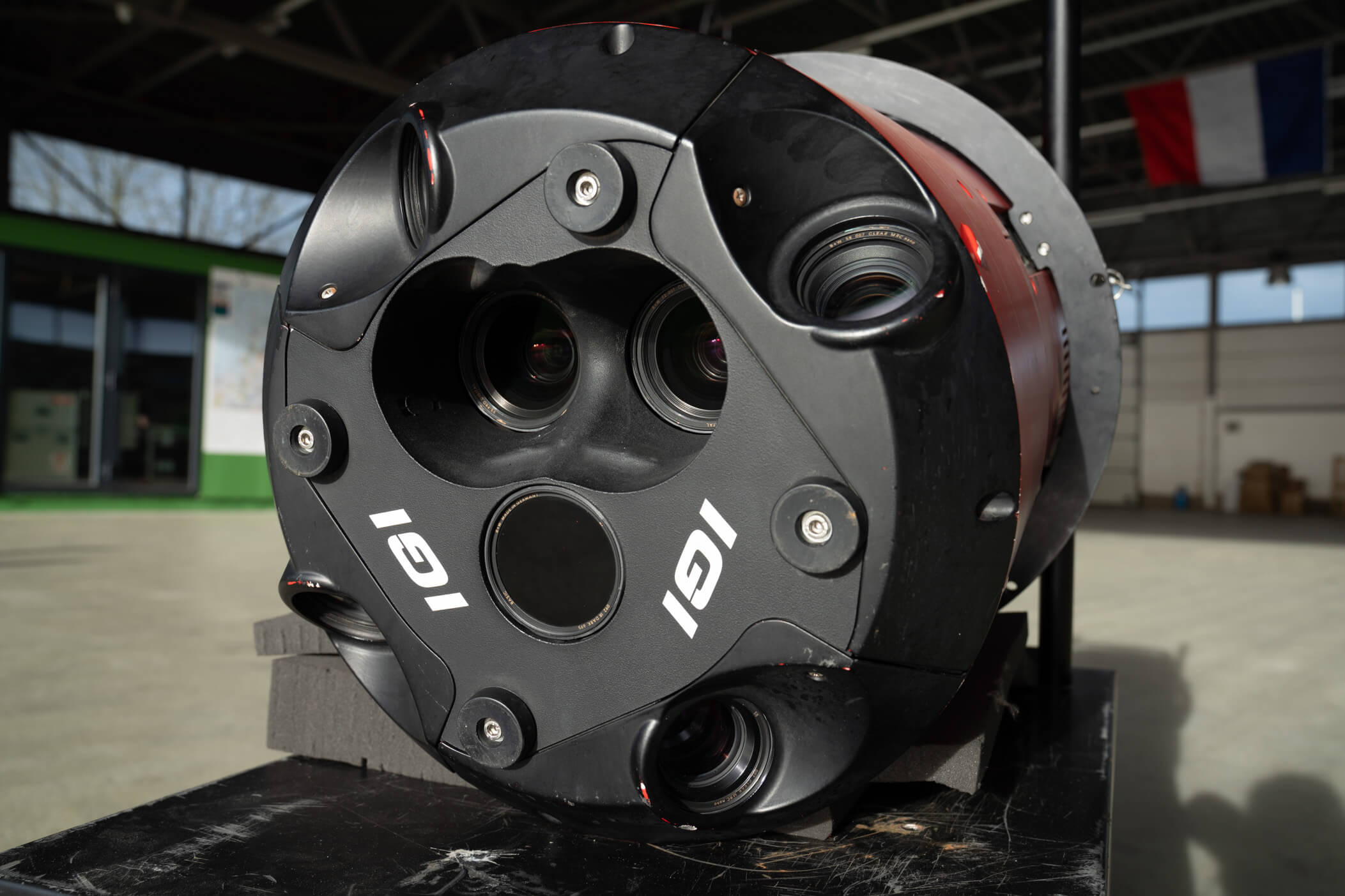

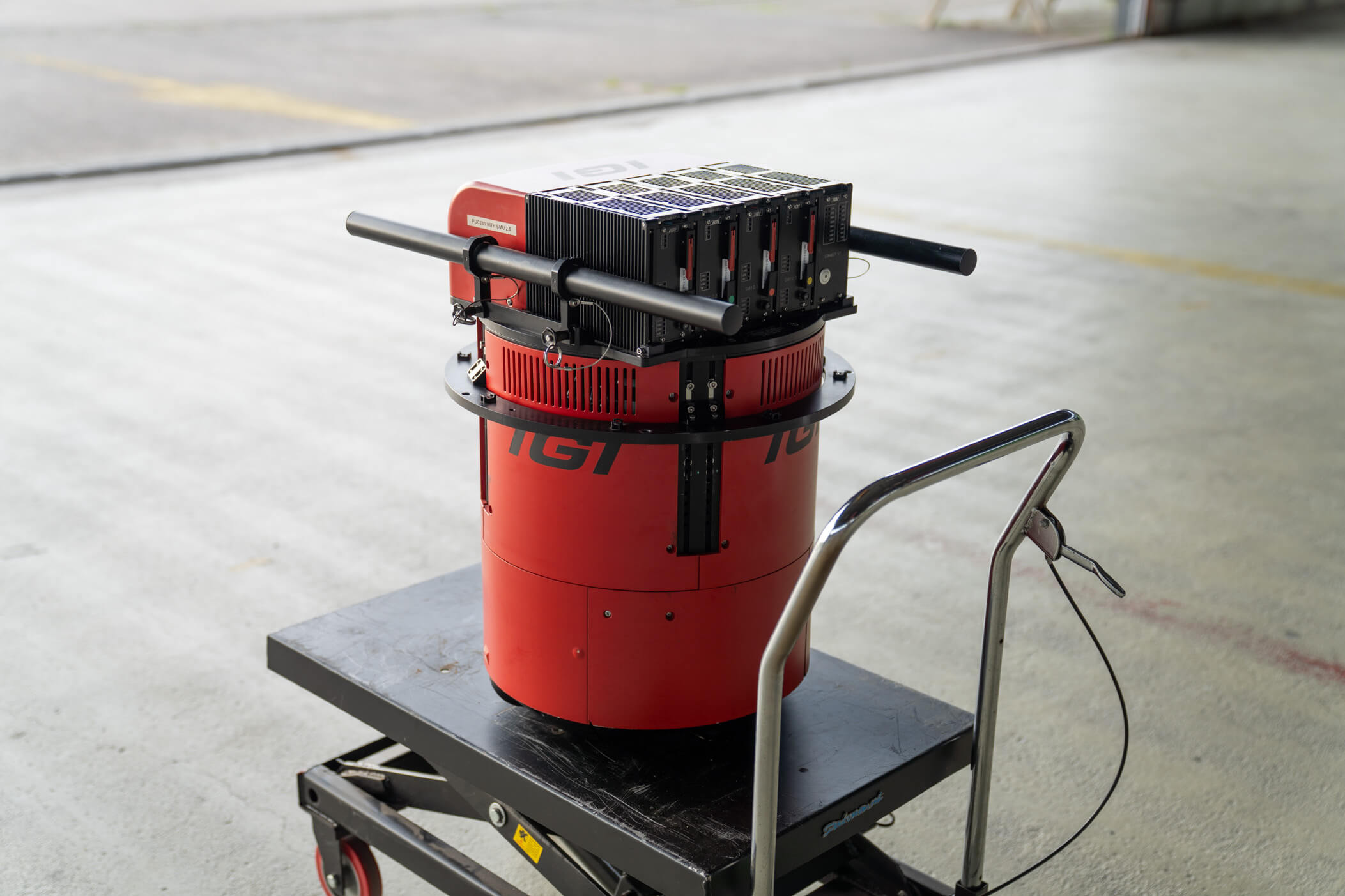

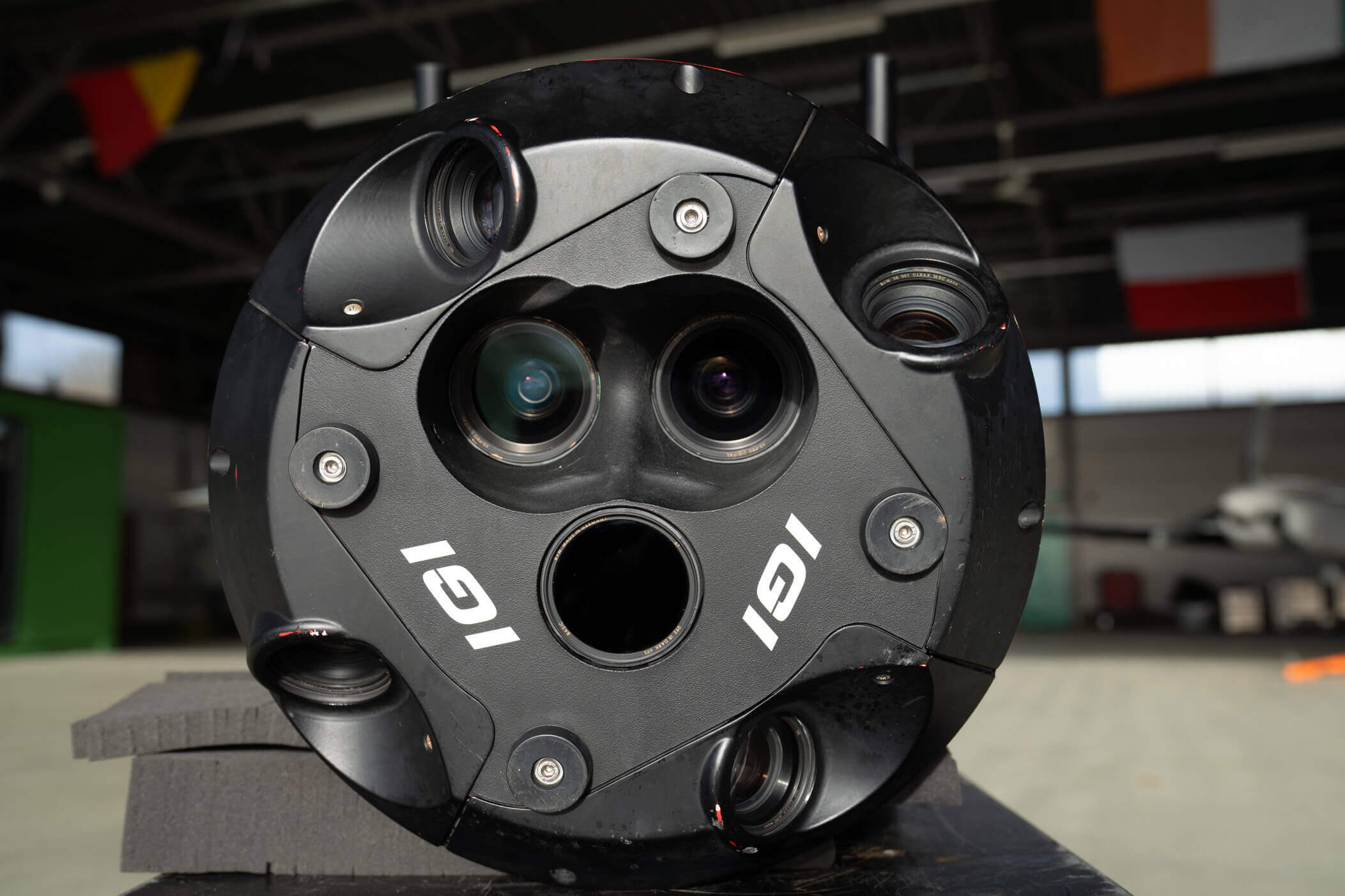

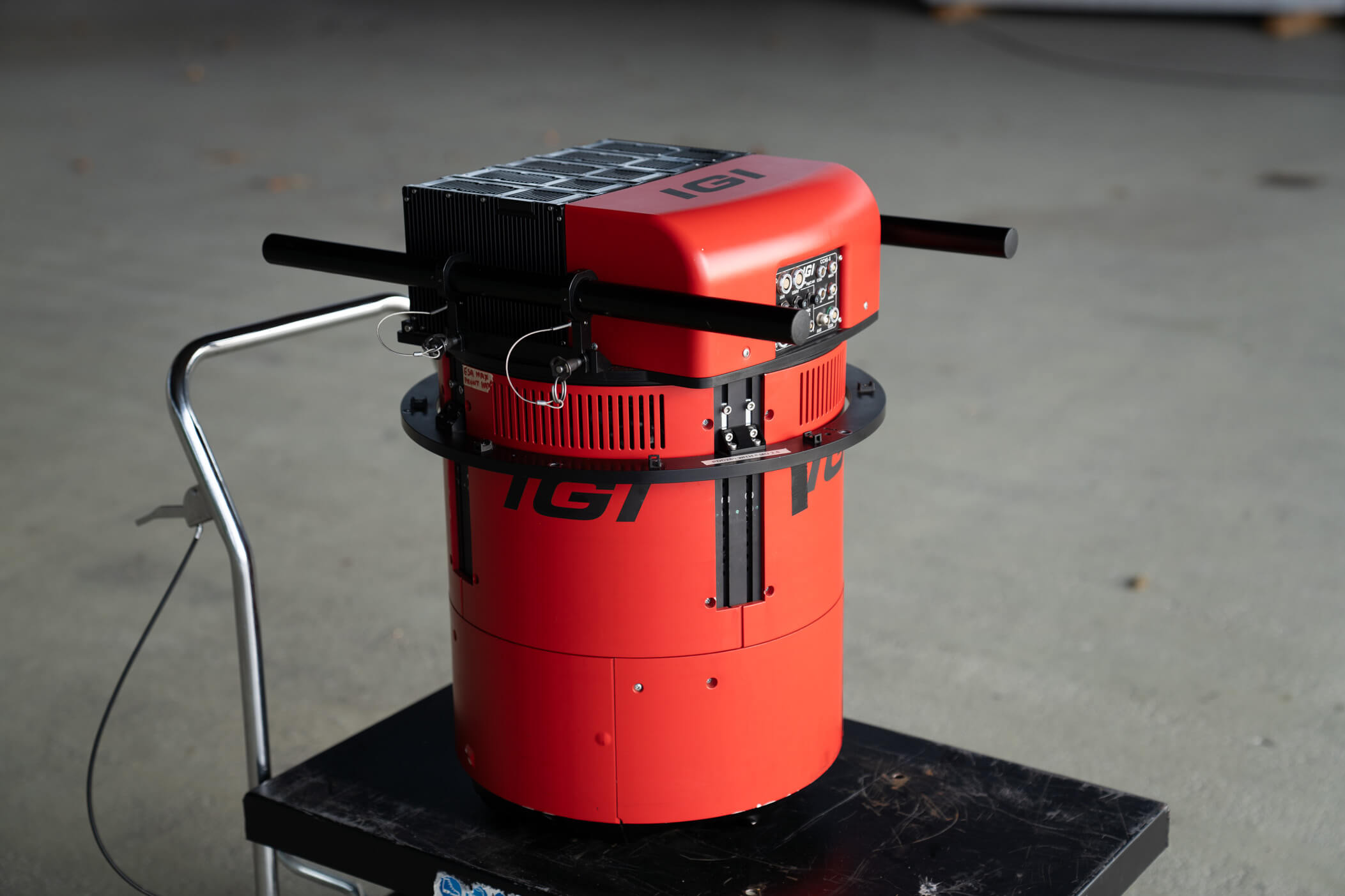

Used system in excellent condition for sale. Last production mission completed in October 2025, ensuring it is still up to date and fully operational. The IGI Penta DigiCAM-280 is a state-of-the-art 2-in-1 large-format nadir and oblique aerial camera system, designed for high-end photogrammetry and 3D mapping. It captures both nadir and oblique imagery in a single flight, enabling efficient production of orthophotos, oblique capture and digital twins.

Key Specifications:

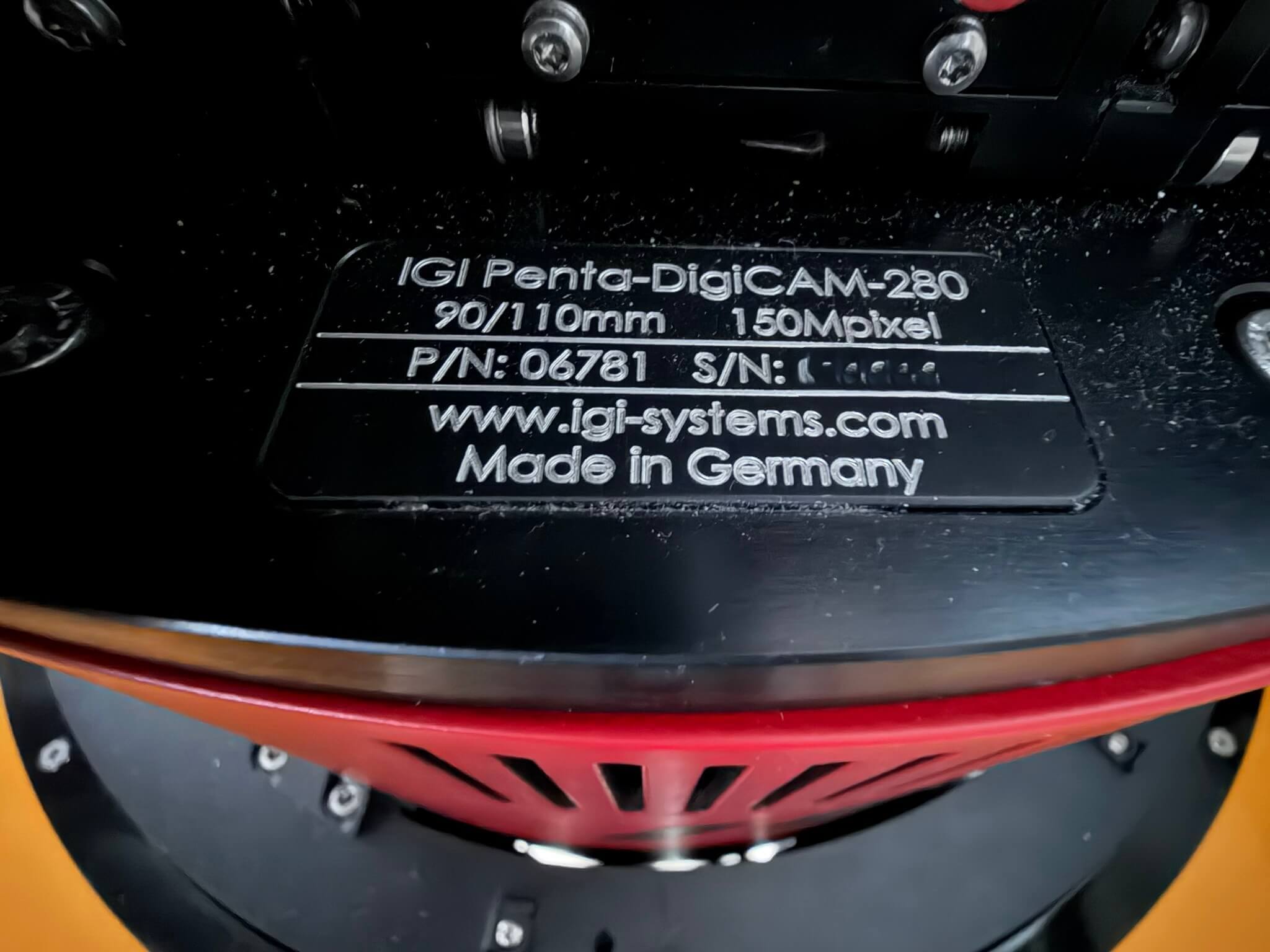

• Model: IGI Penta DigiCAM-280
• Nadir Image Size: 20,200 × 14,110 px (285 MP, RGBI)
• Oblique Image Size: 14,204 × 10,652 px (150 MP × 4, RGB)
• Sensor Technology: BSI-CMOS
• Pixel Size: 3.76 µm
• Maximum Frame Rate: 0.6 sec
• Dynamic Range: 83 dB
• Lenses: Nadir 90 mm / Oblique 110 mm
• Channels: RGBI, RGB, CIR, NIR (nadir), 4× RGB (oblique)
• Integrated Systems:

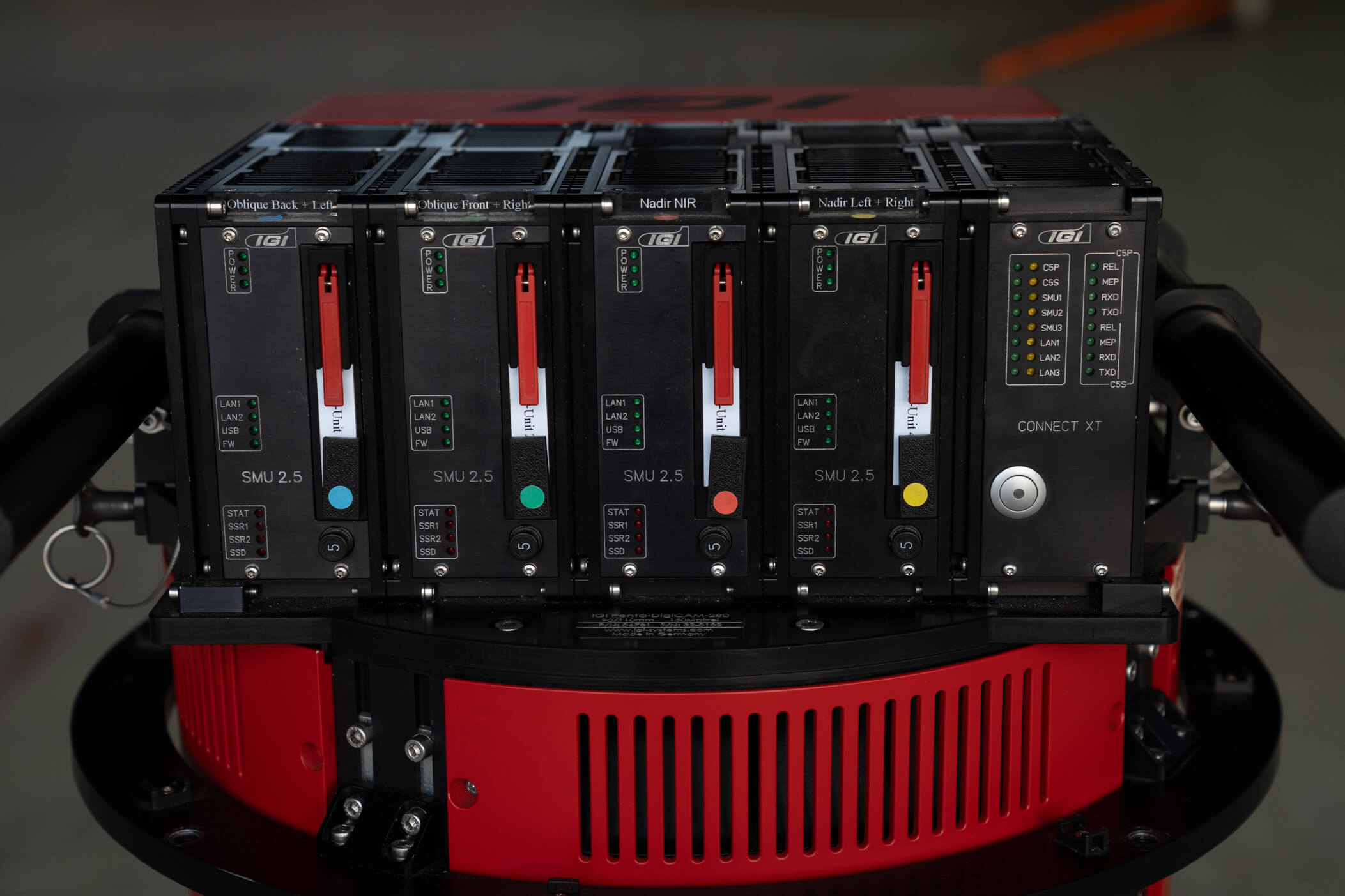

  • IGI SMU-2 - Sensor Management Unit

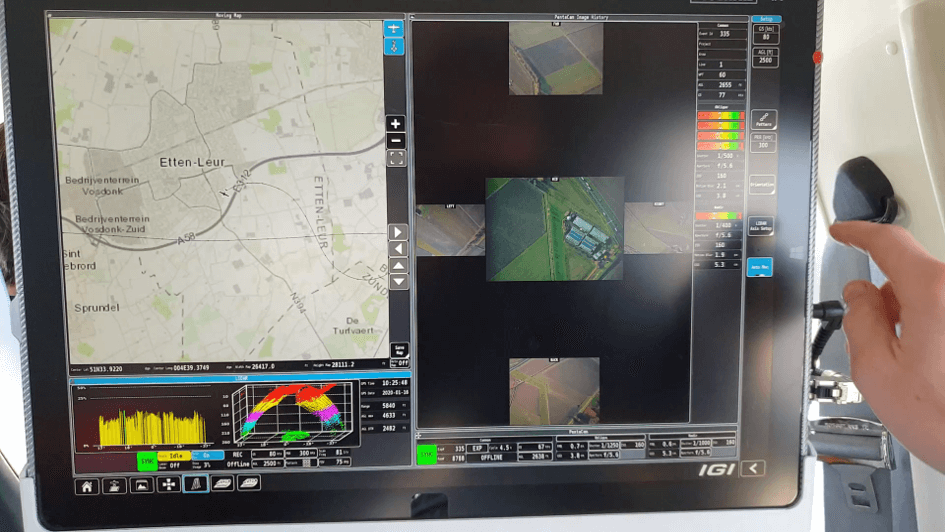

  • IGIvisu - Sensor Management Software for live view of images and changing camera parameters

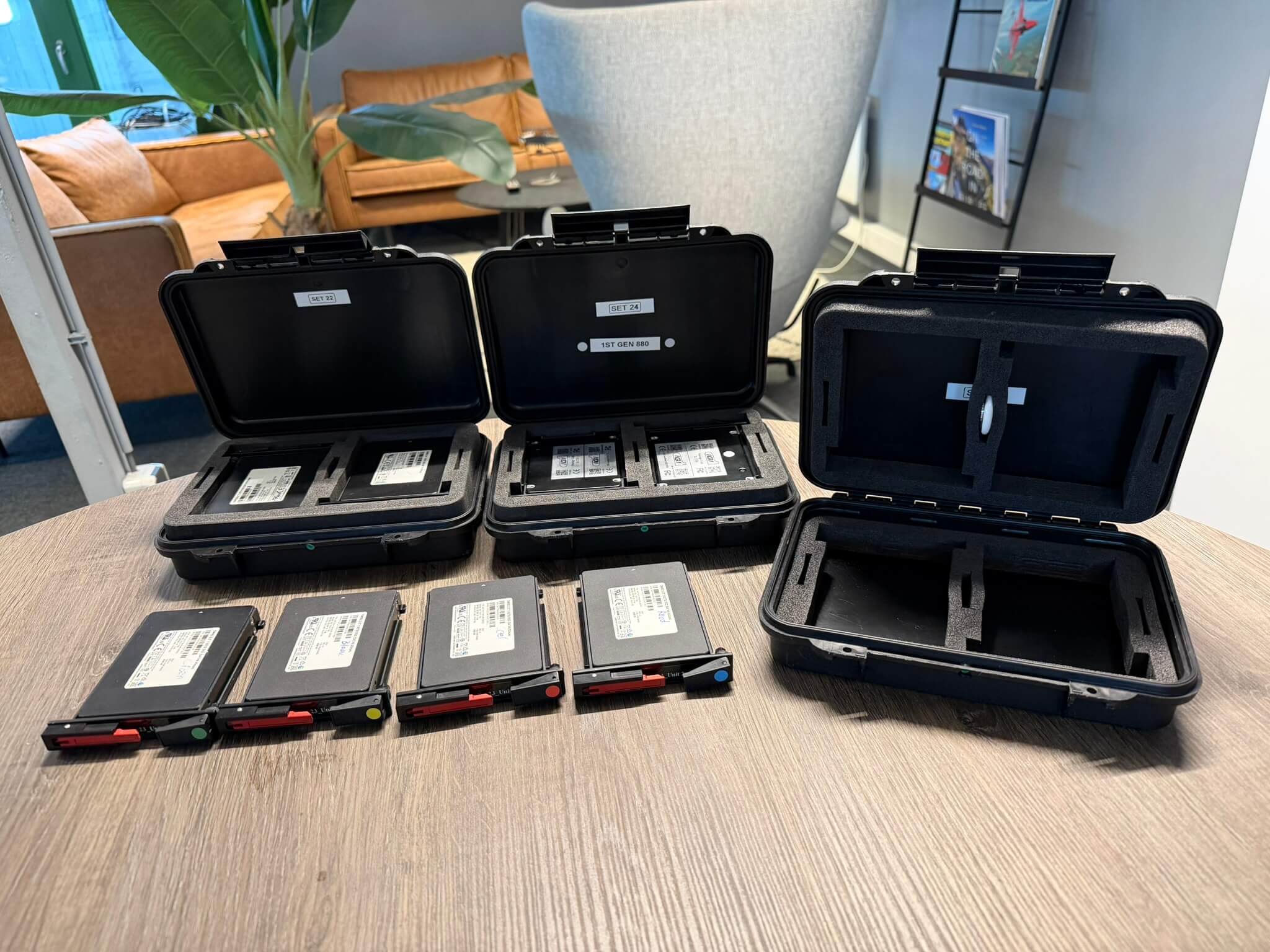

• Storage: Storage: 3 complete sets of storagesets of 16 TB. Possibility to configure in RAID setup for redundancy. 1 storageset allows for 1 day of flying.

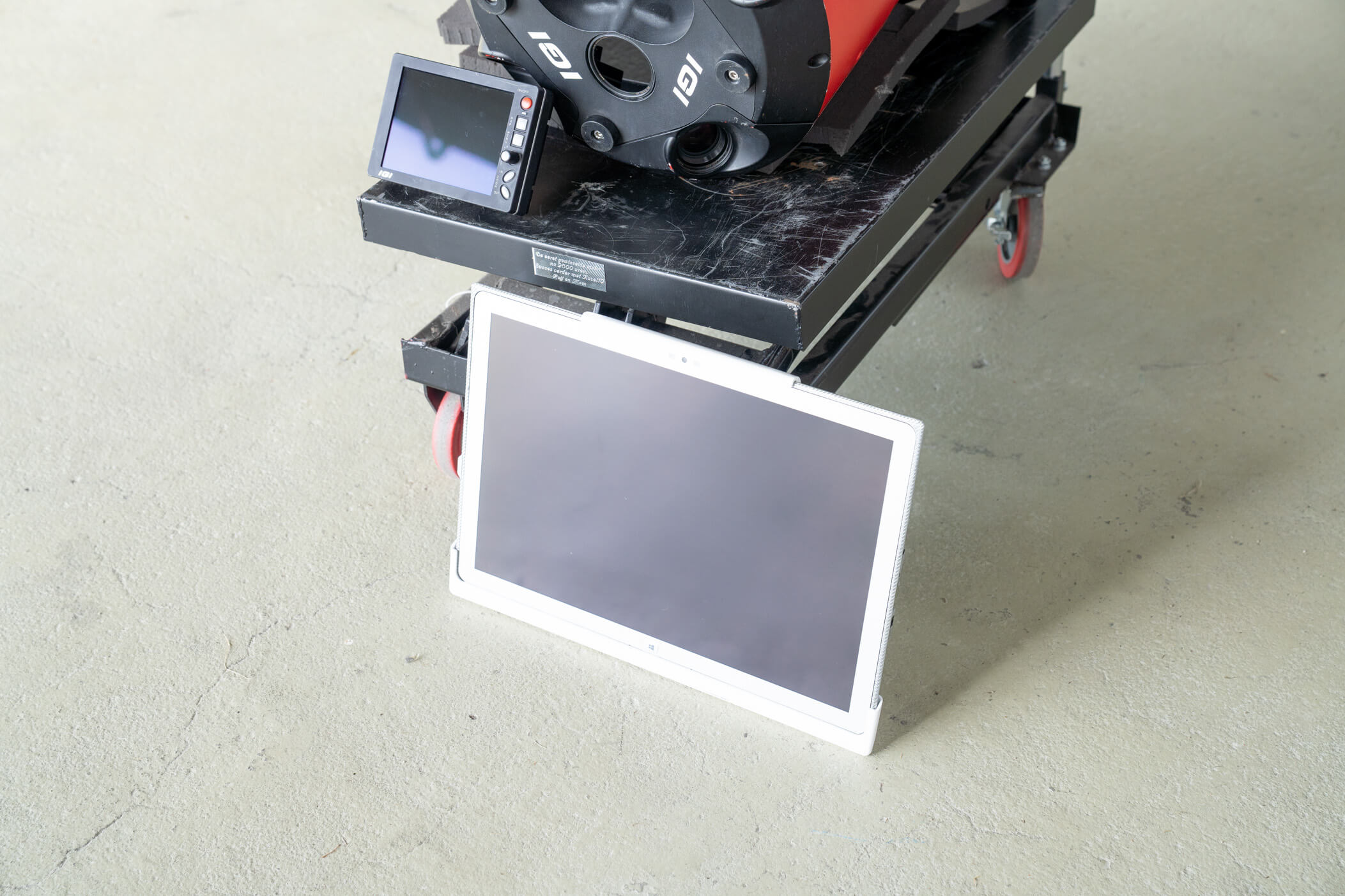

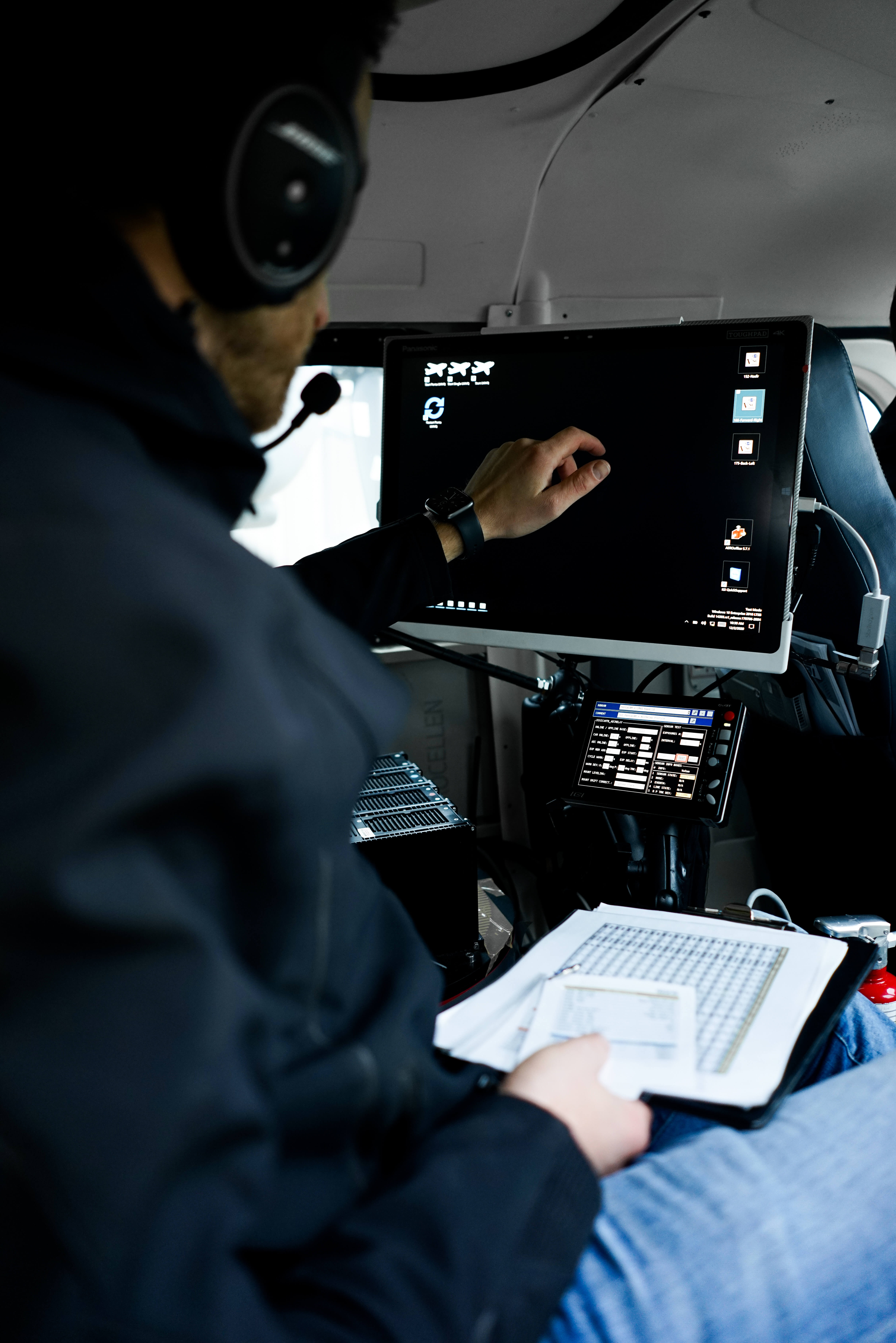

• Operator Screen: 20"
• Software: IGI Image Processing Software (IPS) which includes 8 simultaneous executions.

Calibration and maintenance state:

• Nadir shutters replaced in July 2025
• Valid calibration certificate for whole system, dating August 2025
• Oblique shutters replaced in January 2025

Highlights:

• System will be delivered without GNSS/IMU and CCNS5 Flight Management System but are optional available.
• Combines large-format and oblique capture in one system
• Normale operating performances 1.5cm GSD at 1200ft and 5cm GSD at 4000ft
• Total system consists of 1x 280MP camera and 5x 150MP cameras from PhaseOne
• Can be installed at your preferred location
• Operating instructions can be given at your preferred location
