RollOut ISR payload deployment system

SKU#

rec8Ism6WnlWZ9Wyg

DESCRIPTION:

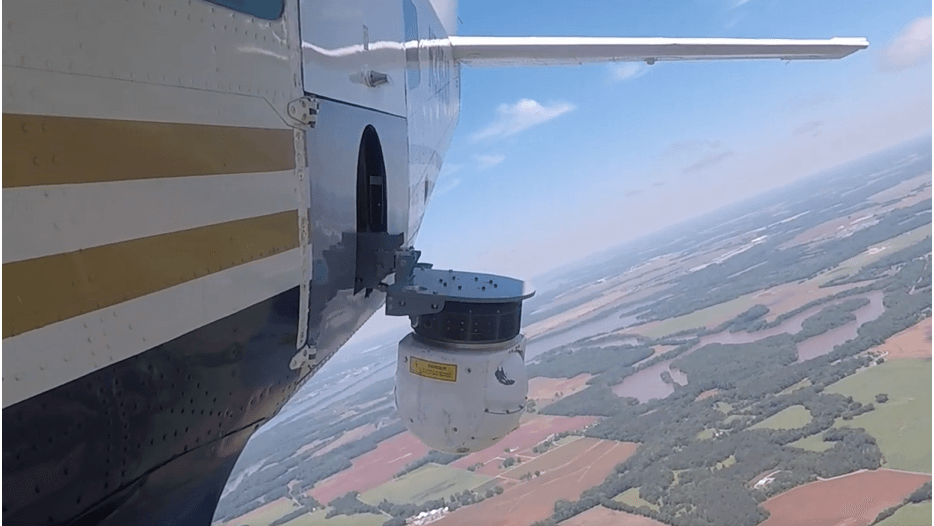

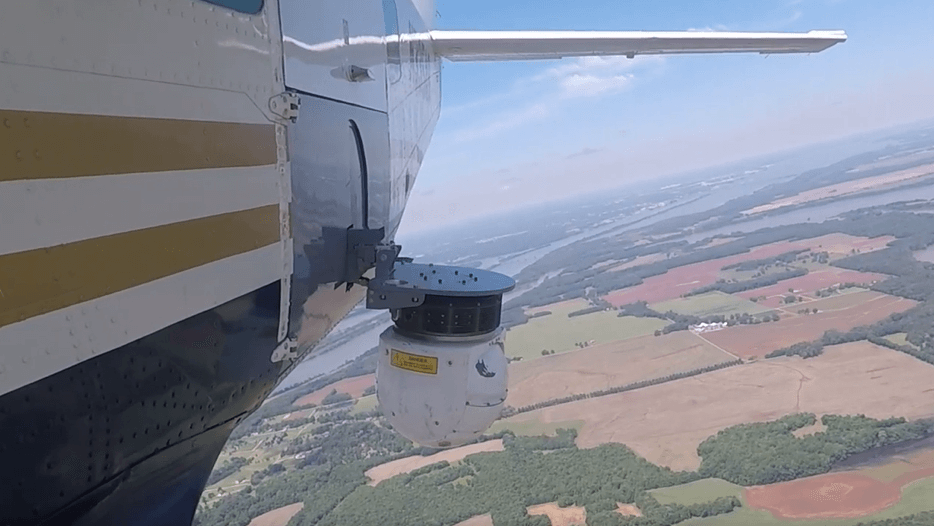

ROLLOUT Camera/Sensor Deployment System

Designed for the Caravan 208 and 208B, this mount attaches to the existing seat tracks and does not require structural modification to the aircraft. The STC requires only one day for initial installation. Once initially installed the RollOut requires only two hours to remove and two hours for re-installation, giving the aircraft full flexibility for multi mission requirements.

The STC includes:

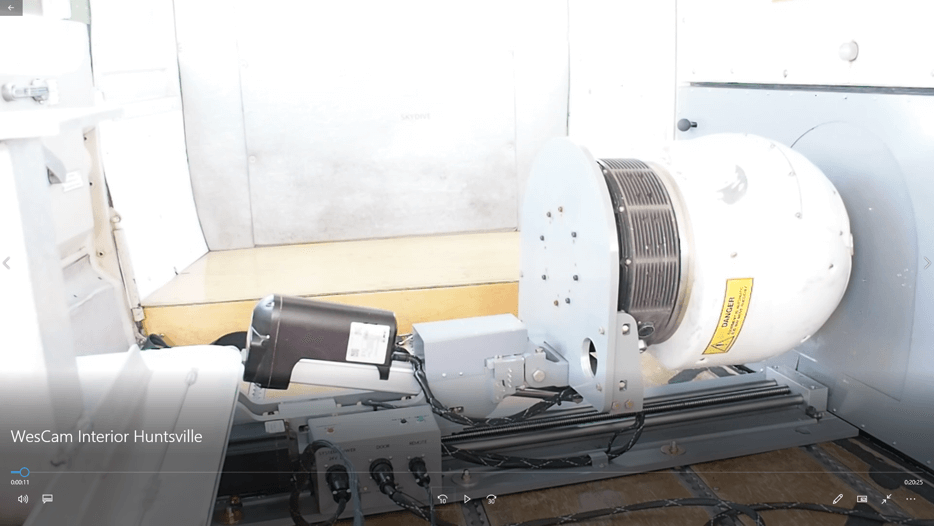

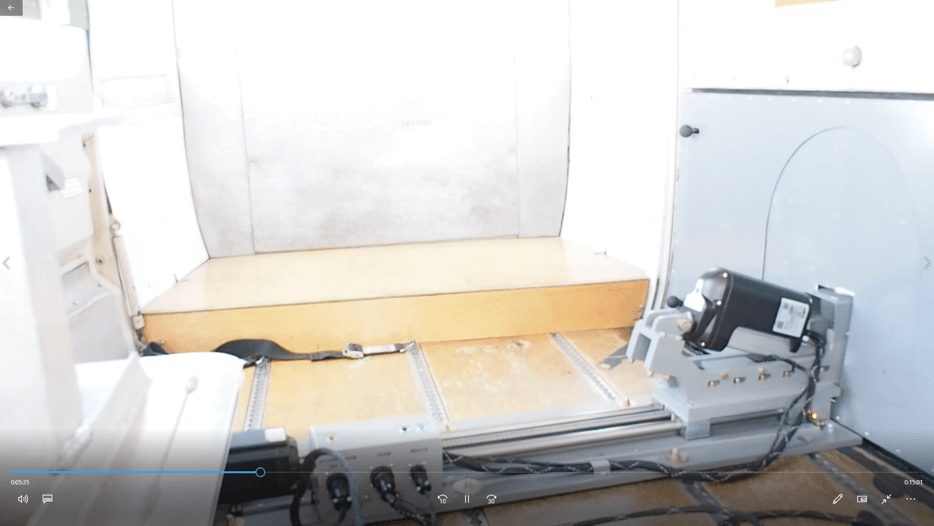

The RollOut deployment system
Operator workstation
30 AMP Mission Power service port

Product Highlights

INSTALLS IN LESS THAN 4 HOURS
NO AIRFRAME MODIFICATION REQUIRED
LOWER ½ DOOR PROVIDED BY OUTLOOK AERO
WORKSTATION PROVIDED
PAYLOAD UP TO 150 POUNDS 18 INCHES IN DIAMETER

SPECIFICATIONS

Maximum payload weight: 125 pounds (57 kilos)
Maximum payload size: 19 inches Diameter (480 Cm)
Power requirements: 24 volt, 12 Amp at start-up
Ground clearance deployed 25 Inches

WEIGHTS

Operator station: 26.8 pounds. Between Flight Station FS122 and FS146. The middle point FS134.
Rollout System without mission payload: 98.4 lbs. FS156 retracted and FS158 extended.
Door weight: 49 lbs. FS158
