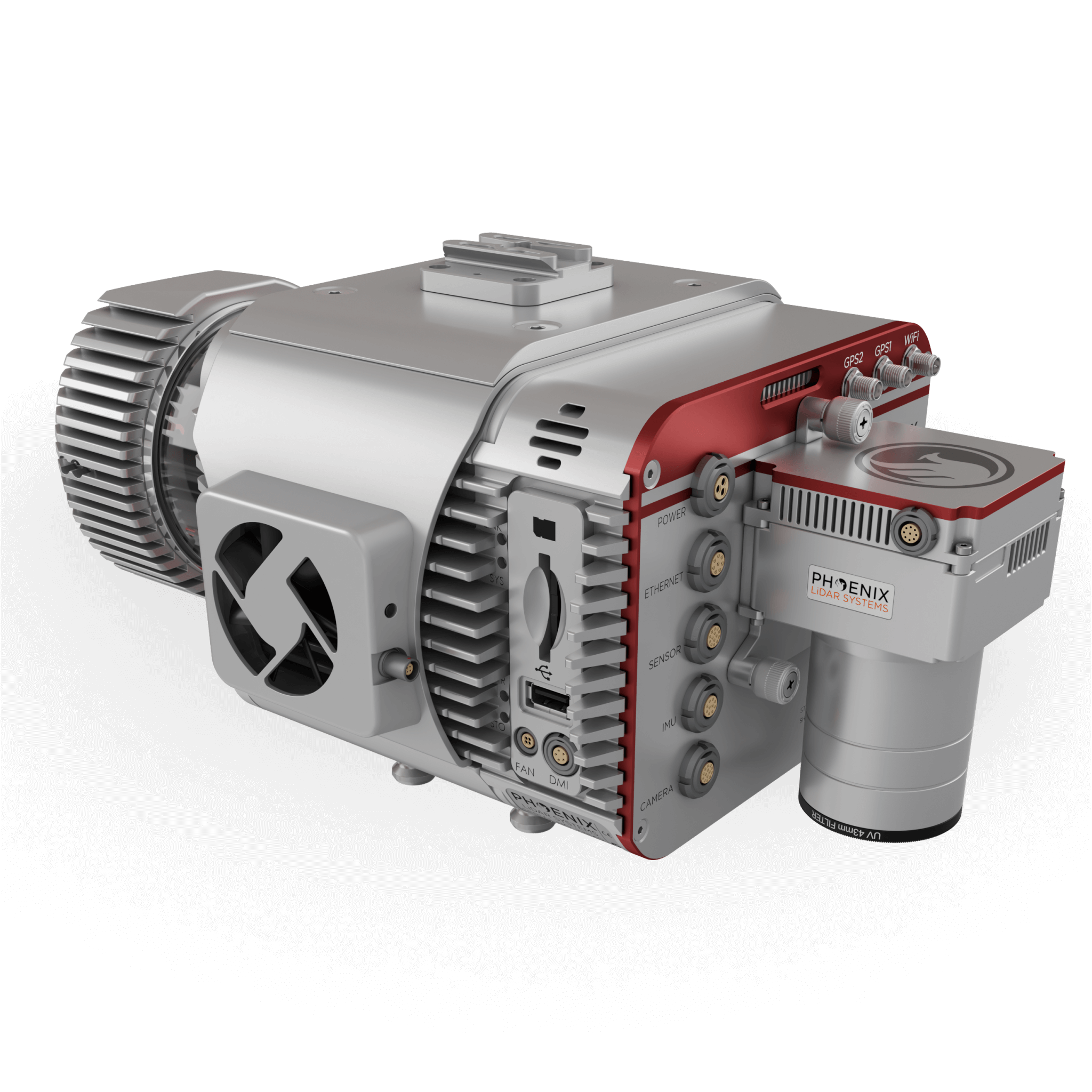

RANGER-UAV22 FLEX

RANGER-UAV22 FLEX

FLY IT, DRIVE IT, MOUNT IT ANYWHERE - THE MOST ADAPTABLE MAPPING SYSTEM

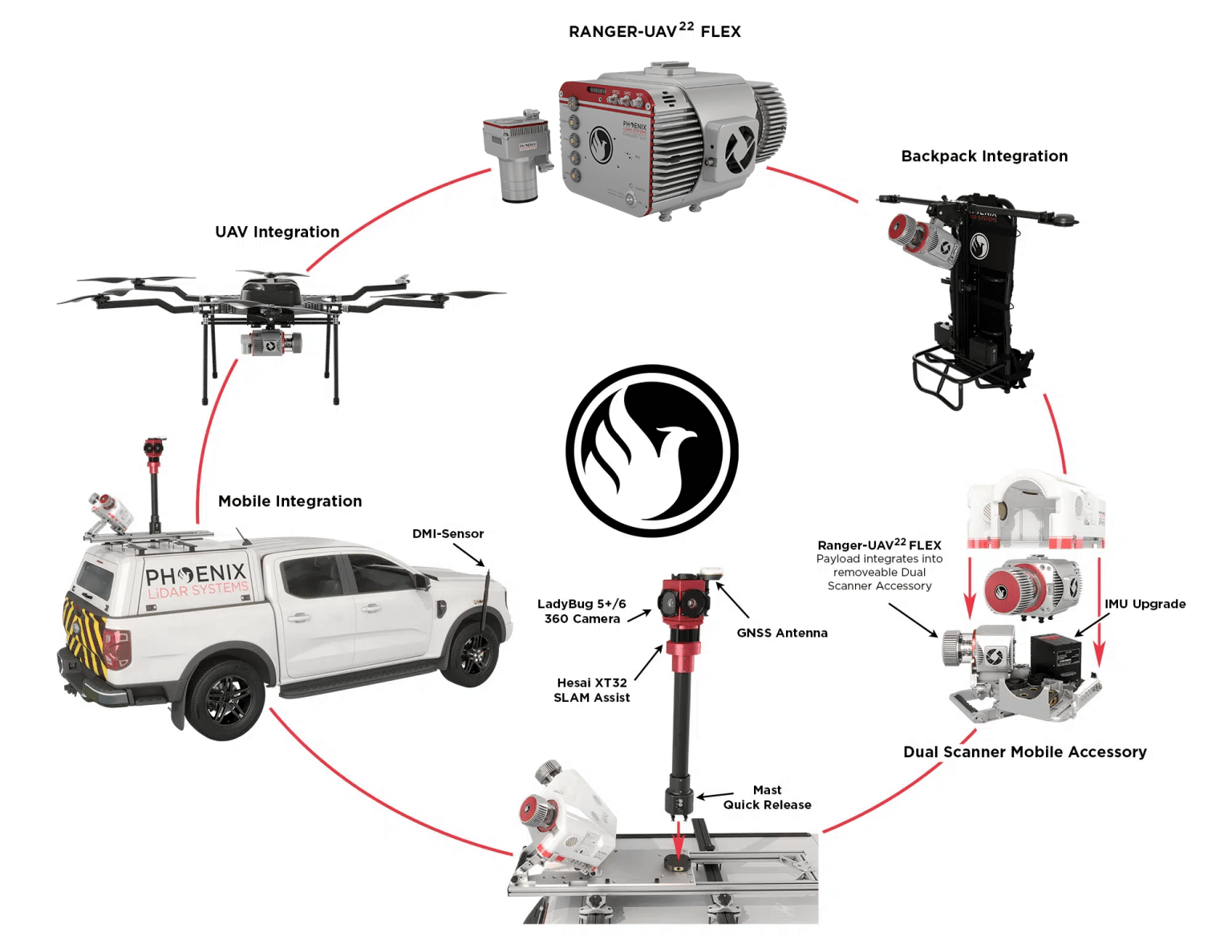

The RANGER-UAV²² FLEX sets a new standard in adaptability, designed to integrate effortlessly across multiple platforms—including backpacks, UAVs, VTOLs, vehicles, and even the RANGER FLEX DUAL MOBILE SYSTEM. With its high-pulse measurement capability, it delivers exceptional accuracy and detail in every dataset. From dense UAS missions and precision mobile mapping to low-altitude survey flights, this system is built to excel wherever your projects take it.

• Fully NDAA-compliant!
• Pulse Repetition Rate (PRR): 1200 kHz
• Scan Rate: 10 - 200 lines/second
• Field of View: 360°
• Laser Wavelength: 1550 nm
• Constellation Support: GPS, GLONASS, BEIDOU, GALILEO
• Max Echoes/ Returns per pulse: 15
• Dimensions: 27.9 x 20.9 x 17.3 cm
• Operating Voltage/ Power: 14-28 VDC / 75 W
• Operating Temps: 0 - +40° C
• Beam Divergence: 0.35 mrad @ 1/e
• Sensor Precision: 5 mm
• Laser Scanner Model: Riegl VUX 1 UAV22
