Lumos 120XM

Watch Product Video
SKU#
recltbt94VnX9raFQ
DESCRIPTION:

The Lumos 120XM is a new generation of UAV LiDAR solution. At 1.5kg the Lumos XM120 is the lightest and most powerful
system in the range.

The Lumos 120XM has a precision of 30mm and an accuracy of 40mm. It supports triple returns resulting in data collection with high accuracy and greater detail for high-quality survey models. Lumos XM can be flown at greater altitudes and for a longer duration owing to its lightweight design and powerful return accuracy.

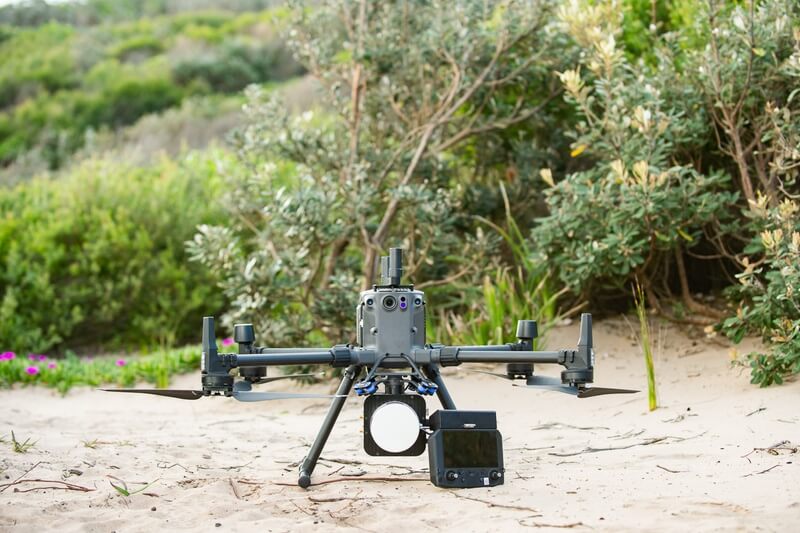

It fits to a range of UAVs including the DJI M300, Freefly Alta8, Skyfront Perimeter 8 and Harris Aerial, and can be adapted to many other airframes.

  • Great flight height
  • Supports triple returns
  • Lightweight
  • Increased flight time
  • High point density
  • Survey Vegetation
  • Site Survey
  • Steep Terrain
  • Thick Vegetation
  • Topography Extraction
  • Forrest Fire Management
  • Flood Modelling
  • Powerlines
  • Construction
  • Road Scanning

Quick Specs
Combined System Accuracy (RMSE): 40mm
Combined System Precision (RMSE): 30mm
System Range: 300m (≈985ft)
Flight Height (AGL): 120m (≈395ft)

Lidar sensor
Wavelength: 905nm
Laser Class Class 1 eye safe
Channels: 32
Total Range: 300m
Range Capabilty (Low Relfectivity): 80m @10%
Reflectivity
Range Accuracy: 1cm
Range Precision: ±0.5cm
FOV (Vertical): 40.3°
Frame Rate: 20Hz
Returns Triple return up to 1,920,000 points/sec

Navigation System
Horizontal Position accuracy (PPK): 0.01m
Vertical Position accuracy (PPK): 0.015m
Velocity Accuracy (PP): 0.05m/s
Roll & Pitch Accuracy (PP): 0.01°
Heading Accuracy (1m Antenna Separation): 0.01°
Navigation Update Rate: 200Hz

Supported Navigation Systems: GPS L1, L2, GLONASS L1, L2, GALILEO E1, E5b, BeiDou B1, B2

Supported SBAS System WAAS, EGNOS, MSAS, GAGAN, QZSS
GNSS Update Rate: 8Hz
Hot Start Fix: 3s
Hot Start Battery Capacity: 48hrs
Cold Start Fix: 30s
