IGI Penta DigiCAM-280

New with Warranty! IGI Penta DigiCAM-280 Aerial Survey Camera System

IGI's innovative 2 IN 1 aerial camera systems feature the cutting-edge IGI Penta-DigiCAM, designed for professional photogrammetry.

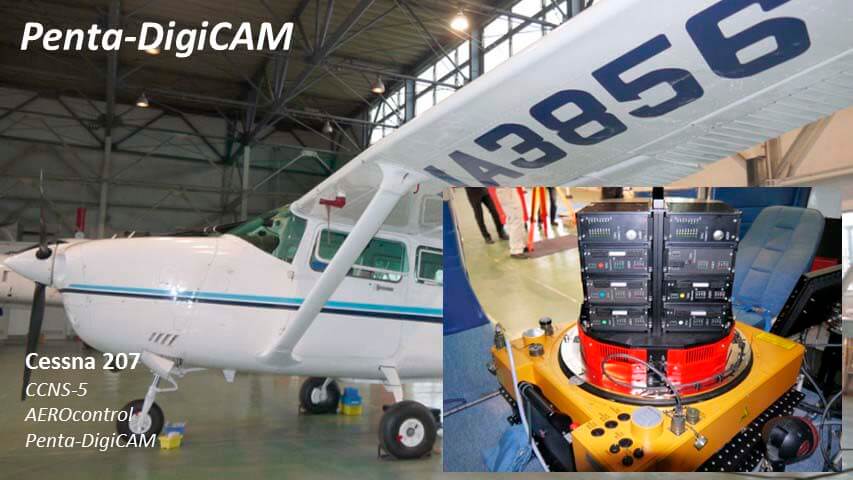

The IGI Penta-DigiCAM integrates five DigiCAM modules—four positioned obliquely and one facing nadir—with fully integrated GNSS/IMU and camera control units mounted above. This configuration enables efficient capture of both nadir and oblique imagery in one flight operation.

Features Include:

• Nadir Image size, RGB 20,200 x 14,110 px, 285MP
• Oblique Image size, RGB 14,204 x 10,652 px, 150MP
• Sensor Technology: BSI(Back Side Illuminated)-CMOS
• Pixel Size : 3,76
• Maximum Frame Rate: 0.6 sec
• High Dynamic Range 83dB
• Channels: RGBI, RGB, CIR, NIR (nadir), 4x RGB (oblique)
• IGI SMU-2 (Sensor Management Unit)
• Up to 12TB Storage Units (with RAID Option)
• Integrated Mission Planning & Flight Guidance (CCNS-5 & IGIplan)
• Integrated Sensor Management (IGIvisu)
• Integrated GNSS/IMU System (AEROcontrol)
• 10" or 20" Operator Screen
