DSM 400

Watch Product Video
SKU#
recKFzQomMcv2Ug8y
DESCRIPTION:

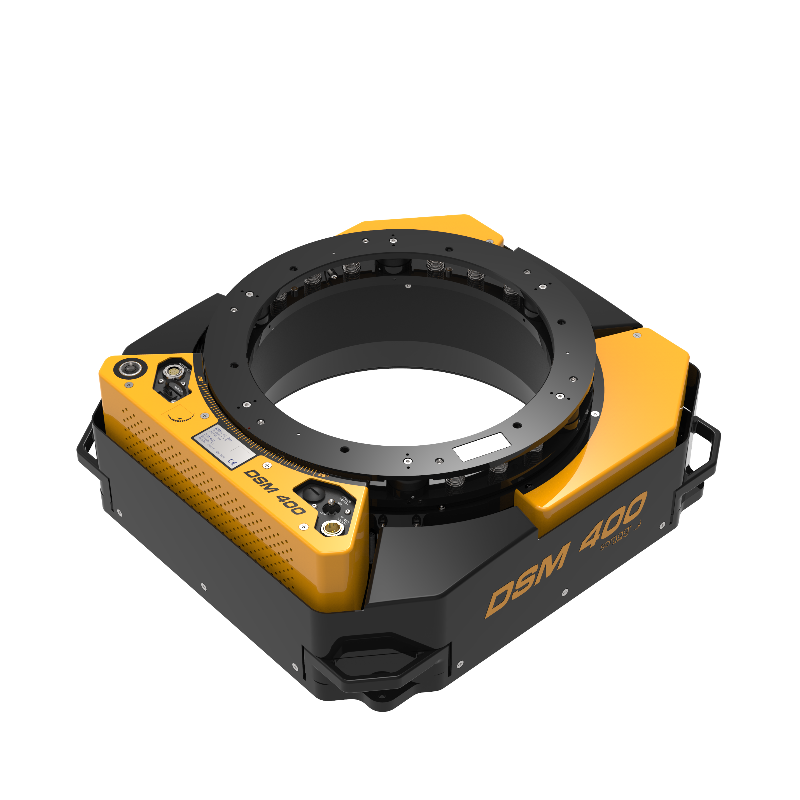

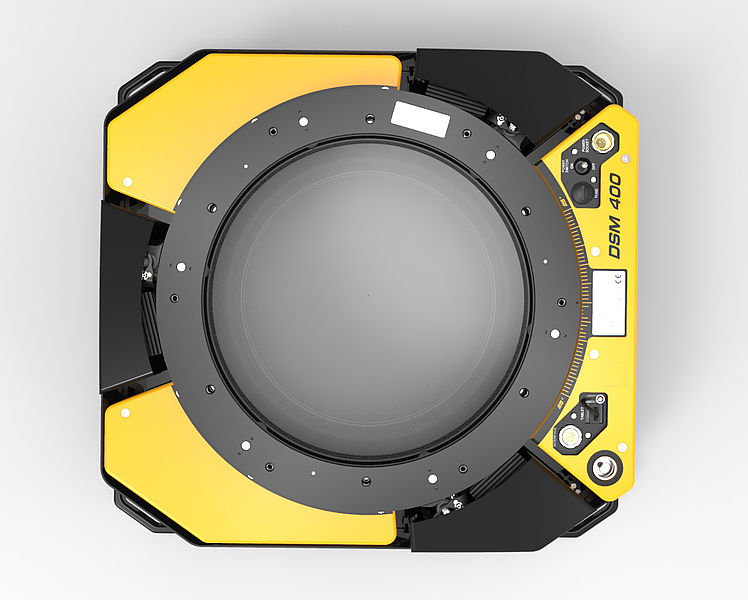

The DSM 400 is a cost efficient and high class Gyro Mount for medium format cameras and sensors. The Mount comes with a new simplified and redesigned control panel. The panel includes one FMS port and an USB port to connect with the SOMAG Mount Control App.

  • Electromechanical gimbal system
  • Gyro Mount for multiple medium format cameras and sensors

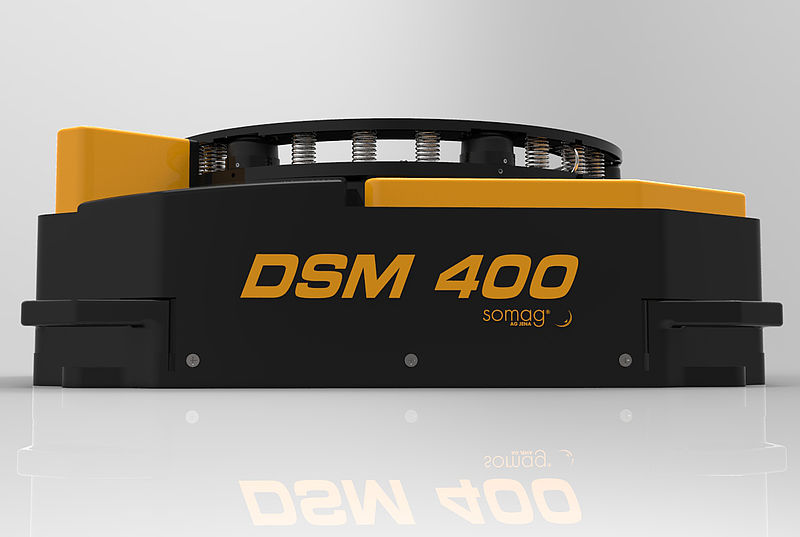

  • Passive Vibration Isolation Ring for decoupling of high frequency oscillations
  • Usable with SOMAG Mount Control App

  • RIEGL VUX-1LR
  • Itres microCASI 1920
  • Phase One Aerial Systems
  • NEO VNIR - 1800

Angular Stabilization Ranges

Pitch at 0° Roll: ≤± 10.5°

Roll at 0° Pitch: ≤± 10.5°

Yaw (Drift): ≤± 25.0°

Residual Angular Rate1

≤± 0.5°/s rms

Residual Deviation

without IMU Support1: ≤ 0.3° rms

with IMU Support1,2: ≤ 0.08° rms

Payload3

5…35 kg | 11…77.2 lbs

Mass

14 kg | 30.9 lbs

Dimensions

(Regular Leveling Positions)

Length: 460 mm | 18.1 in

Width: 430 mm | 16.9 in

Height4: 165 mm | 6.5 in

Usable Diameter

Ø270 mm | Ø10.6 in

Operating Temperature

-15 °C … +55 °C | -5 °F…+131 °F

Storage Temperature

-55 °C … +85 °C | -40 °F…+185 °F

Communication Interfaces

RS 232 | USB

Operational Voltage

28 VDC (24…30 VDC)

Average Power Consumption at Operational Voltage

30 W

Peak Power Consumption at Operational Voltage

120 W

Applied Standards

RTCA DO-160-G, EUROCAE-14G, ISO 7137, 2006/42/EC Machinery

Preliminary data, subject to change

1 Vehicle angular motion <10°/s and with typical data acquisition profile frequency spectrum

2 Deviation from perpendicular depends on accuracy of used IMU

3 Minimum payload is based on usage of Passive Vibration Isolation Ring

4 Minimum 131 mm / Maximum 199 mm (Minimum 5.1 in/ Maximum 7.8 in)
