CSM 40

Watch Product Video
SKU#
recZU5aICz9Kt7Fcy
DESCRIPTION:

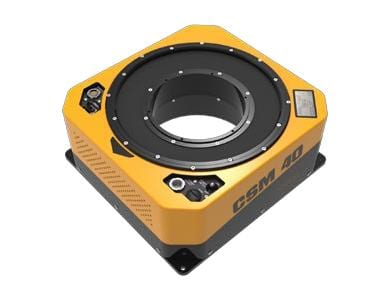

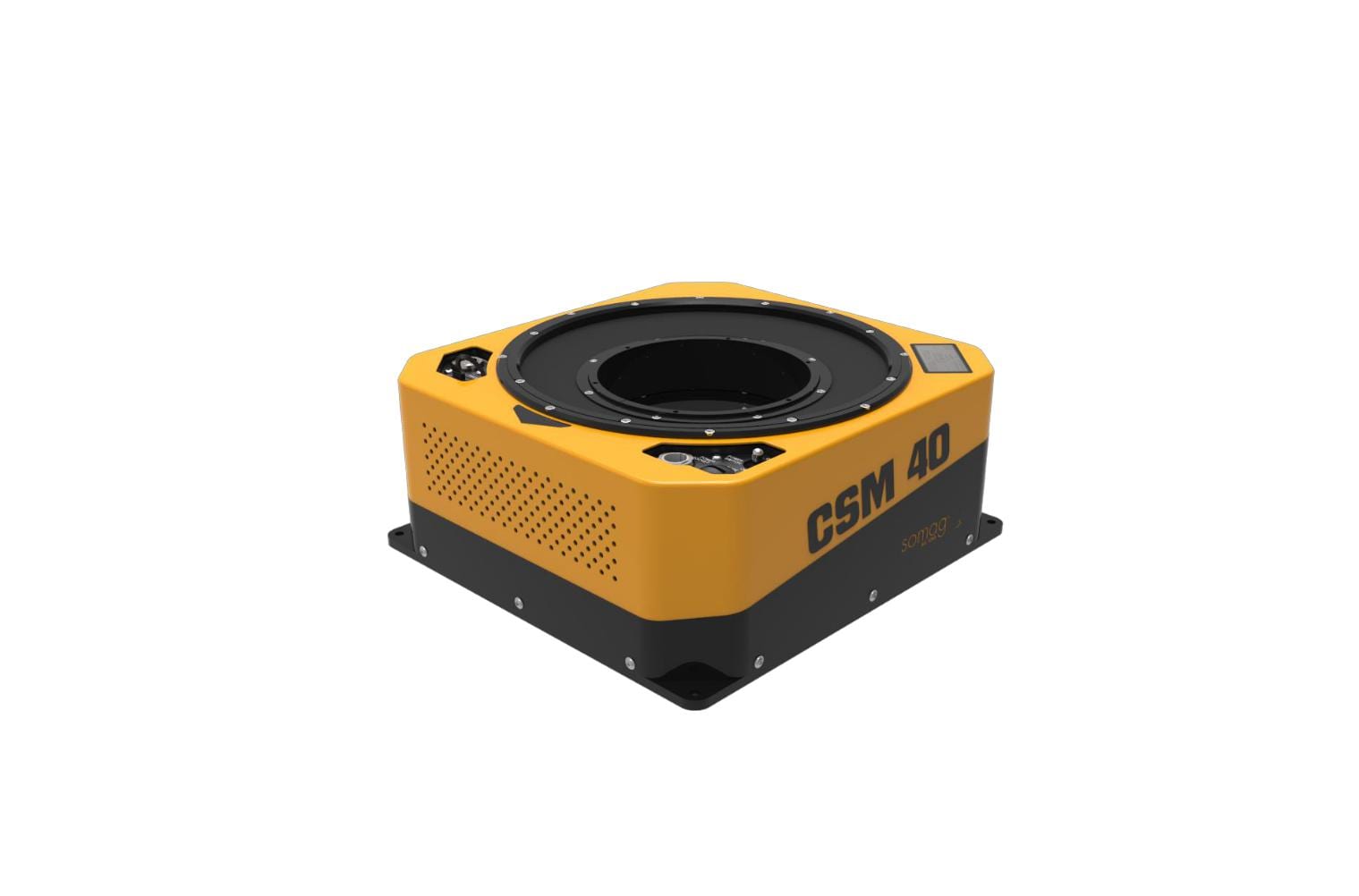

The CSM 40 is part of Somag's new Mount generation, which is extra small and cost efficient. The compact design and highly functional modularity enable a powerful mounting system, which is particularly suitable for ultralight aircraft and drones. Like all SOMAG airborne Mounts, the CSM 40 offers a control panel and can also be connected to the SOMAG Mount Control App.

  • Electromechanical gimbal system
  • Gyro Mount with minimum dimensions and weight for single medium format cameras and sensors
  • Optional Passive Vibration Isolation Ring for decoupling of high frequency oscillations
  • Usable with SOMAG Mount Control App

  • Leica RCD 30
  • Hasselblad A6D
  • Phase One iXU/iXM series
  • Specim AisaKESTREL

Angular Stabilization Ranges

Pitch at 0° Roll: ≤± 15.0°

Roll at 0° Pitch: ≤± 15.0°

Yaw (Drift): ≤± 25.0°

Residual Angular Rate1

≤± 0.5°/s rms

Residual Deviation

without IMU support1: ≤ 0.3° rms

with IMU support1,2: ≤ 0.08° rms

Payload3

0…15 kg | 0…33.1 lbs

Mass

5.2 kg | 11.5 lbs

Dimensions

(Regular Leveling Positions)

Length: 290 mm | 11.4 in

Width:275 mm | 10.8 in

Height3: 121 mm | 4.8 in

Usable Diameter

Ø130 mm | Ø5.1 in

Operating Temperature

-15 °C…+55 °C | -5 °F…+131 °F

Storage Temperature

-55 °C…+85 °C | -40 °F…+185 °F

Communication Interfaces

RS 232 | USB

Operational Voltage

28 VDC (24…30 VDC)

Average Power Consumption at Operational Voltage

15 W

Peak Power Consumption at Operational Voltage

60 W

Applied Standards

RTCA DO-160-G, EUROCAE-14G, ISO 7137, 2006/42/EC Machinery

Preliminary data, subject to change

1 Vehicle angular motion <10°/s and with typical data acquisition profile frequency spectrum

2 Deviation from perpendicular depends on accuracy of used IMU

3 Payload installation level: 110 mm (4.3 in) | Minimum: 86 mm (3.4 in) | Maximum 134 mm (5.3 in)
