433 - RANGER-XL

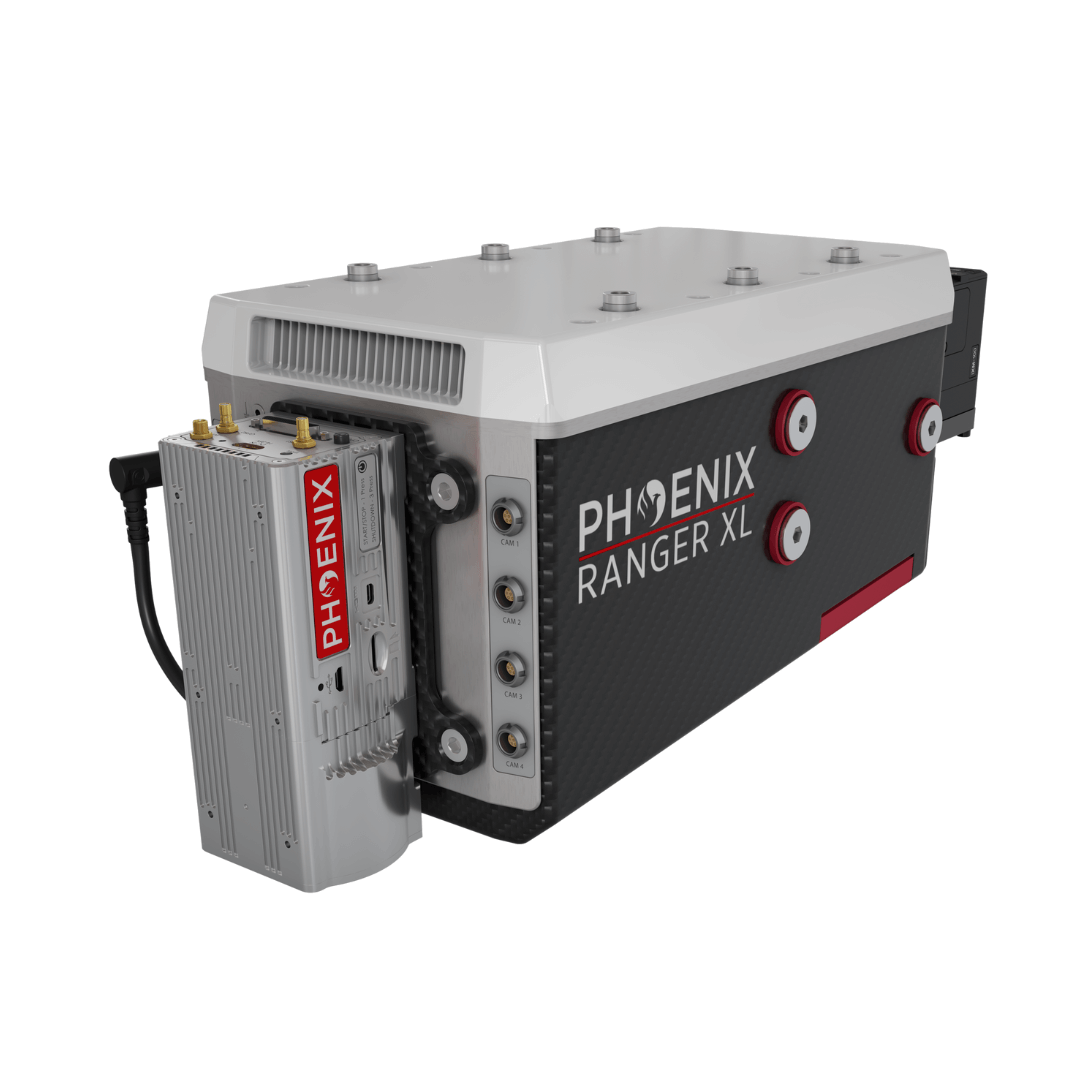

PHOENIX RANGER-XL

Riegl Inside! This complete system incorporates the Riegl VUX-240 laser scanner.

The Ranger-XL is a lightweight airborne laser scanner, specially designed for use on UAS and small manned airplanes or helicopters. With its wide field of view of 75 degrees and an extremely fast data acquisition rate of up to 1.8 MHz, the Ranger-XL is perfectly suited for high-point density corridor mapping applications such as power line, railway track and pipeline inspection.

Several Ranger-XL camera accessories as well as UAV and manned aircraft attachment options are available.

Featuring the new Phoenix LiDAR AIR NavBox

This system includes the new AIR NavBox. This ultra-lightweight box greatly increases flexibility in key areas:

• Reducing weight to allow longer flight-times on lighter UAVs.
• Improved data throughput to accommodate multiple sensors producing more data as pixel count and pulse repetition frequencies increase.

The new Phoenix LiDAR AIR NavBox offers the most industry-altering capabilities in a tiny box not much bigger than a standard-size computer mouse.

• Dimensions: 60 x 125 x 50 mm
• Weight
• 450g
• Control via button, 4g, wifi or ethernet

​
